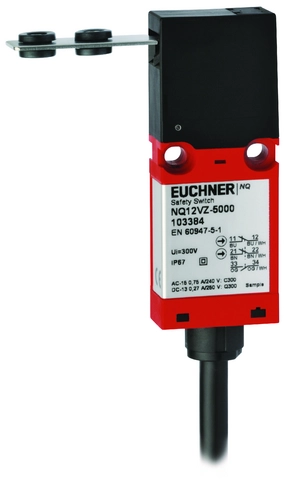

NQ02VZ-5000 (Order no. 103383)

Safety switch NQ, connecting cable 5 m

  • Connecting cable, 5 m
  • 2 pos. driven contact
NQ02VZ-5000 (Order no. 103383)

Description

Switching element

02

Slow-action switching contact 2 positively driven contacts

Accessories required

Actuator is not included.

Dimension drawing
Dimension drawing
Wiring diagram 02
Wiring diagram 02

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20TUEV Süd München_NQ_B 040393 0022 Rev 01c_UL_us_E93776_9

Electrical connection values

Fuse max. 2 A gG
Rated insulation voltage Ui 250 V
Rated impulse voltage Uimp 4 kV
Utilization category
DC-13 0.27 A 250 V
AC-15 0.75 A 250 V
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 2.5 A

Mechanical values and environment

Anfahrgeschwindigkeit 3 ... 60 m/min
Connection type Connecting cable, 5 m
Number of door position positively driven contacts 2
Extraction force 10 N
Actuation frequency max. 1200 1/h
Actuating force 5 N
Installation orientation any
Insertion depth 25.3 mm
Storage temperature -25 ... 70 °C
Mechanical life 1 x 10⁶
Retention force 1 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -25 ... 70 °C
Material
Contact Silver alloy, gold flashed
Housing Reinforced thermoplastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position2x10620 y
Important! Values valid for DC-12 100 mA/24V


In combination with actuator ACTUATOR-Q-GT, HINGED ACTUATOR-Q-RO, HINGED ACTUATOR-Q-LU, ACTUATOR-Q-WT

Overtravel 2.9 mm

In combination with actuator ACTUATOR-Q-WTB

Overtravel 2.3 mm

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 2,7 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 103383
Item designation NQ02VZ-5000
Gross weight 0,469kg
Customs tariff number 85365019000
ECLASS 27-27-26-02 Safety switch with separate actuator (Type 2)
