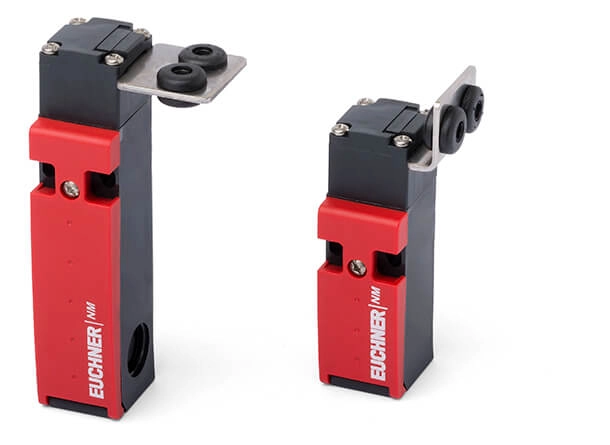

Safety switch NM.VZ

Description

The plastic-encapsulated safety switches of design NM are used for monitoring the position of safety doors and moving machine components.
The easy adjustability of the actuating head in 4 approach directions permits maximum flexibility. Two basic housings are available with up to 3 switching contacts.
The compact design, as well as the option of any installation orientation, means that these switches can be integrated in all automation and assembly fields.

Features

• Protective insulation with glass fiber-reinforced plastic, degree of protection IP67
• Minimum dimensions combined with maximum functionality
• 4 side approach directions
• 1 approach direction from above
• Approach direction can be changed simply and quickly
• Increased actuator overrun of 4 mm
• Smallest approach radii with straight/angled actuators
• 3 cable entries laterally and from below (type NM11..., NM02...,NM12..., NM03...)
• Large connection space of the individual contact elements
• Up to 3 switching contacts
