TQ1-0302G024-5000 (Order no. 103378)

Safety switch TQ

  • Compact housing
  • Auxiliary release from 3 sides
  • Any installation orientation
  • LED indicator
  • Connecting cable, 5 m
TQ1-0302G024-5000 (Order no. 103378)

Description

Guard locking types

TQ1

Closed-circuit current principle, guard locking by spring force. Release by applying voltage to the guard locking solenoid.

Switching elements

SK

For monitoring the door/actuator position.

ÜK

Monitoring contact for monitoring the guard locking (built-in solenoid).

0302

Slow-action switching contact 3 NC + 2 NC

Auxiliary release

This releases the guard locking after operation with a triangular key (included).

Dimension drawing
Dimension drawing

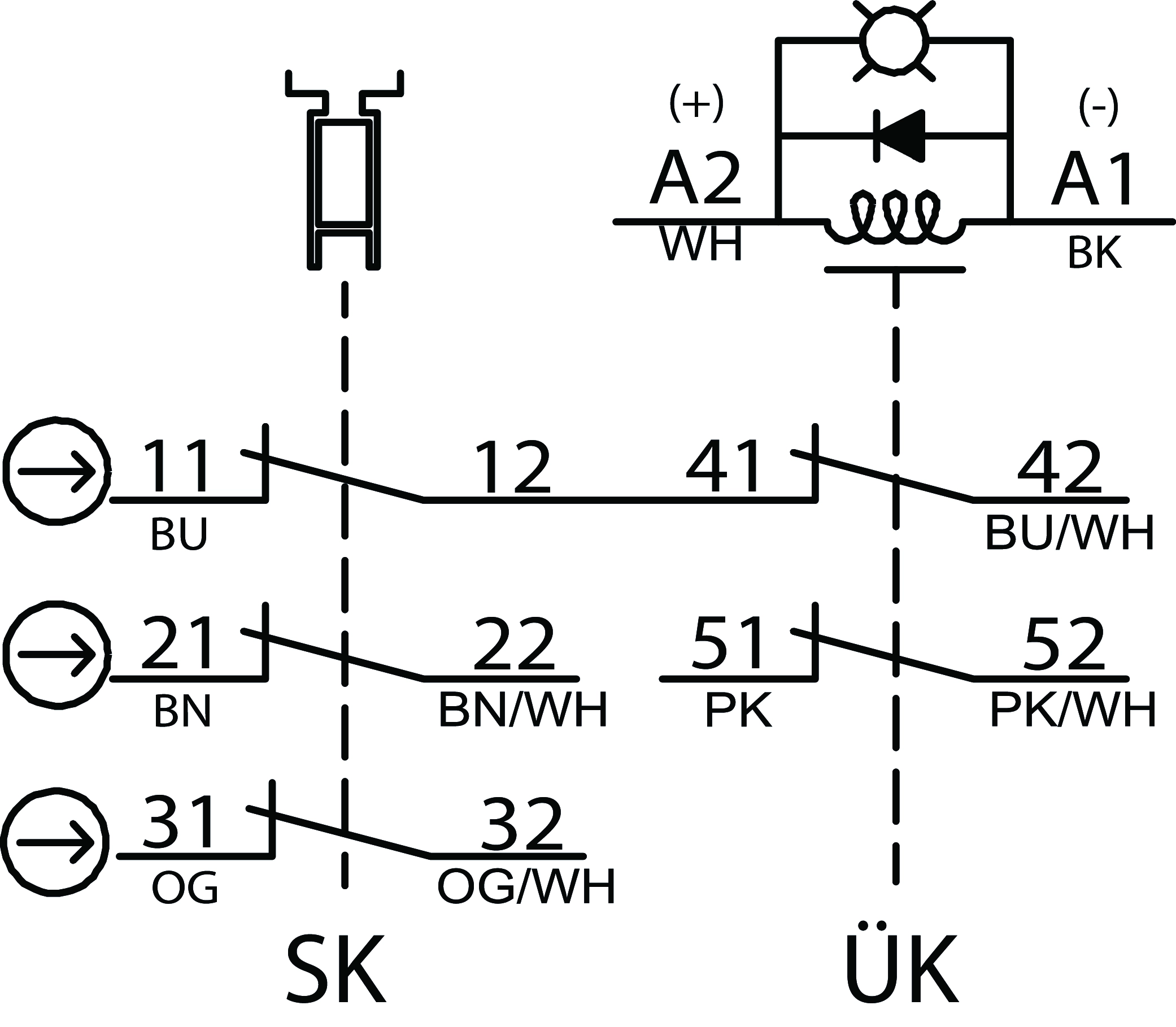

Wiring diagram 0302
Wiring diagram 0302

Dimensional drawings

Dimensional drawings
1Triangular key

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20TÜV Süd München_B 40393 0023c_UL_us_E93776_9

Electrical connection values

Power consumption 2.7 W
Rated insulation voltage Ui 300 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
DC-13 Safety contact 0.27 A 250 V
AC-15 Safety contact 0.75 A 250 V
DC-13 Monitoring contact 0.22 A 125 V
AC-15 Monitoring contact 1 A 125 V
Short circuit protection according to IEC 60269-1 2A gG
Solenoid operating voltage
DC 24 V -15% ... +10%
Solenoid duty cycle 100 %
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 2.5 A

Mechanical values and environment

Approach speed 3 ... 60 m/min
Connection type Connecting cable, 5 m
Number of guard lock monitoring NC contacts 2
Number of door position positively driven contacts 3
Extraction force 10 N
Actuation frequency max. 900 1/h
Actuating force 5 N
Installation orientation any
Insertion depth 26.3 mm
Mechanical life 1 x 10⁶
Retention force 1 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... +50 °C
Material
Contact Silver alloy, gold flashed
Housing Reinforced thermoplastic
Locking force Fmax 500 N
Guard locking principle Closed-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position2x10620 y


PLMaximum SILCategoryMission time
Control of guard lockingDepending on external control of guard locking20 y


In combination with actuator ACTUATOR-Q-WTB

Horizontal overtravel 1.3 mm

In combination with actuator ACTUATOR-Q-GT, HINGED ACTUATOR-Q-RO, HINGED ACTUATOR-Q-LU, ACTUATOR-Q-WT

Horizontal overtravel 1.9 mm

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,1 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 103378
Item designation TQ1-0302G024-5000
Gross weight 0,601kg
Customs tariff number 85365019000
ECLASS 27-27-26-03 Safety switch with guard control
