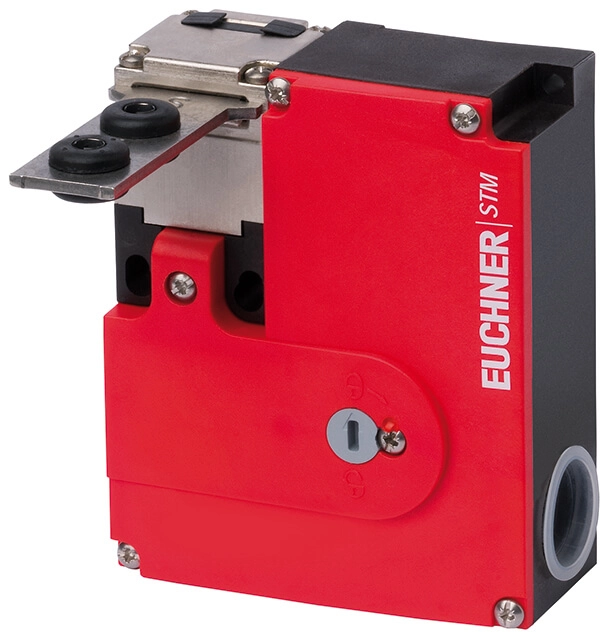

Safety switch STM with guard locking and guard lock monitoring

Description

Due to its small design, the safety switch STM with plastic housing is particularly suitable for applications in which robustness is required in combination with small dimensions.

Along with the variant with the plastic actuating head, the STM is also available with a metal actuating head and cam. This is particularly suitable for applications that require high locking forces (up to 2000N).

Features

  • Plastic housing with actuating head optionally made of metal or plastic
  • Safety switch type 2 with guard locking and guard lock monitoring
  • Separate switching contact for guard lock monitoring (1 switching contact) and door monitoring (2 switching contacts)
  • Suitable for door radii down to minimum 300 mm
  • High degree of protection IP67
Safety switch STM with guard locking and guard lock monitoring

You will find further information in our product catalog.

Product finder

Quick search
Guard locking principle
Number of door position positively driven contacts
Solenoid operating voltage
