New All Inclusive guard locking system for your safety doors

Networking of production systems is becoming more common and the systems themselves are increasingly specialized. As a result, they need smarter and more flexible components. This is particularly true in the field of safety engineering. The MGB2 Modular has been developed by EUCHNER on the basis of the highly successful Multifunctional Gate Box MGB and it sets new standards in this area. The key feature of this all inclusive system for safety doors is its new design. The system consists of the guard locking module, the submodules with control and display functions that can be plugged into it, and a bus module for connection to PROFINET/PROFISAFE. This means that the MGB2 Modular can easily be adapted to individual requirements.

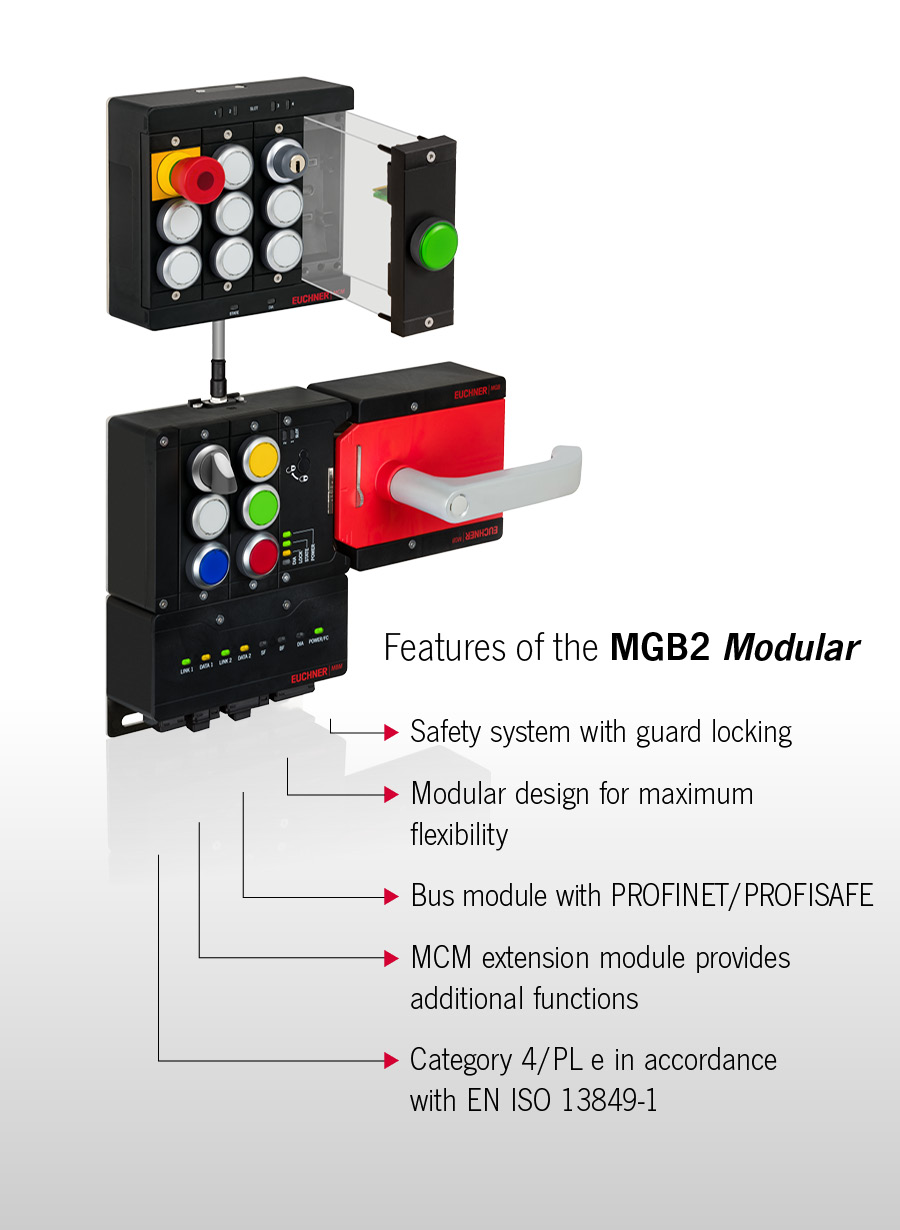

More than simply safety door protection – the new MGB2 Modular

A revised design, new and expanded functions, as well as a modular layout – the new MGB2 Modular is more than simply safety door protection. Thanks to its modular design, you can flexibly adapt the MGB2 Modular to suit your requirements for the safety door. Two sub-modules allow you to integrate up to six different controls into the locking module.

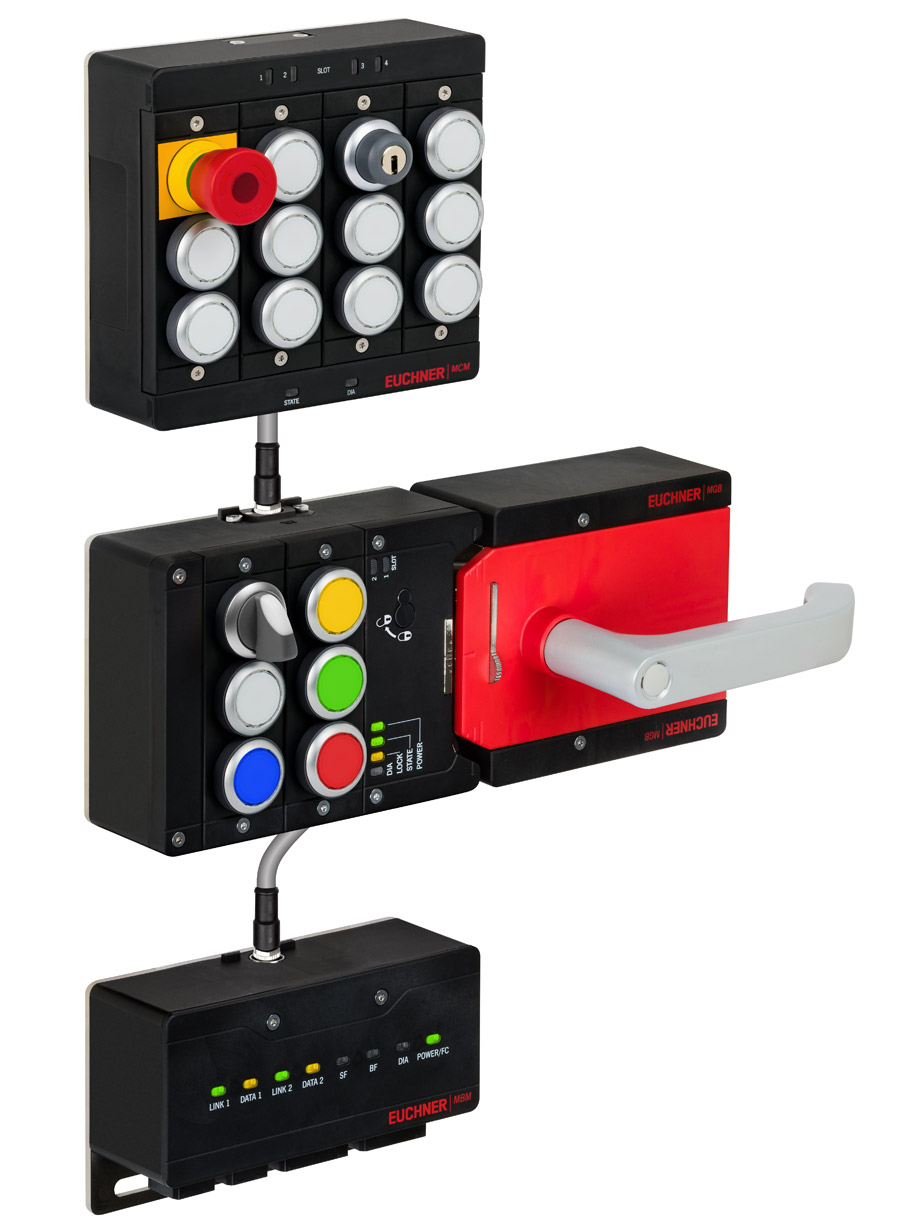

Replacement during operation is possible at any time, as the MGB2 Modular is hot pluggable. If space is limited, you can simply mount the compact bus module MBM with PROFINET/PROFISAFE separately in a suitable place.
Up to six MGB2 Modular locking modules can be connected to one MBM bus module using this type of remote installation.

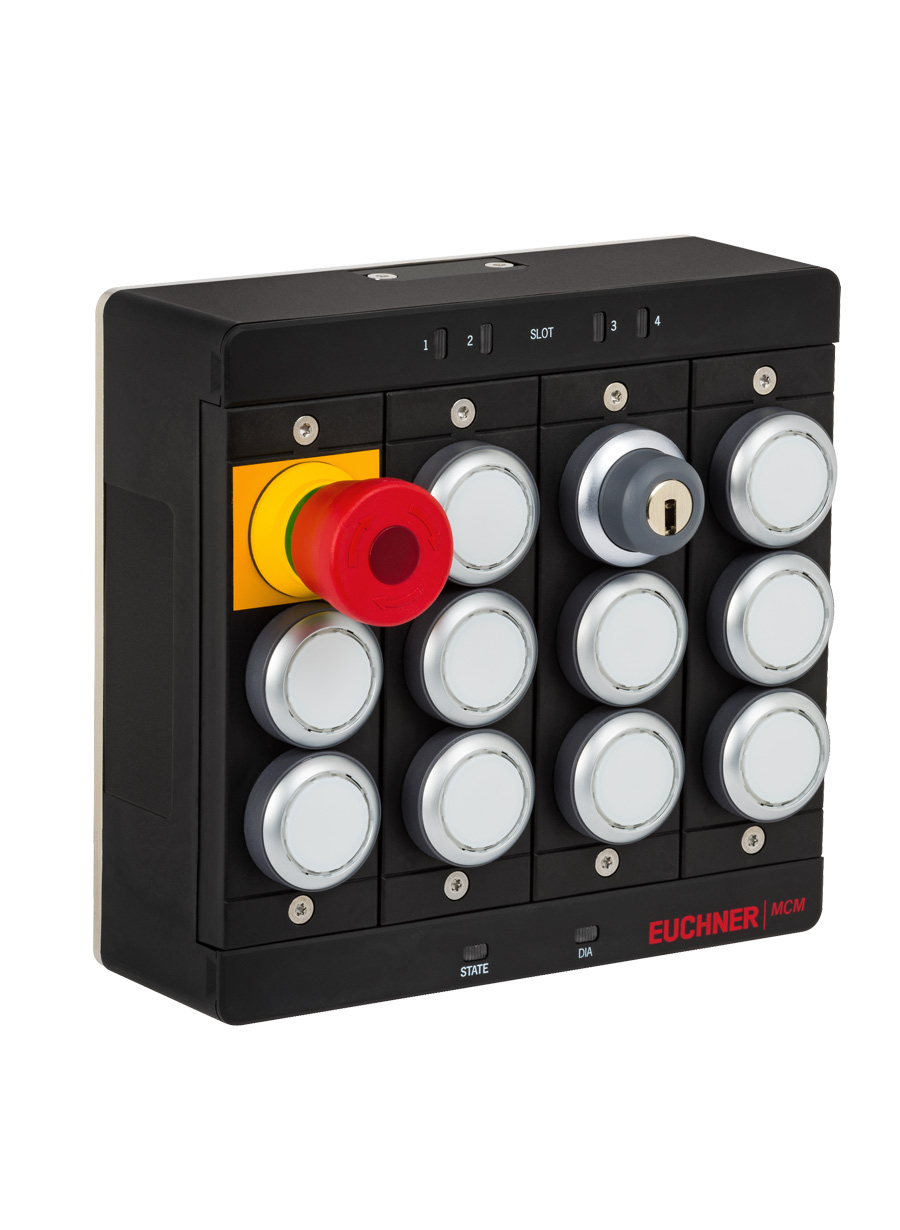

Extension module MCM – even more space for functions

The extension module MCM can considerably expand the functionality of the Multifunctional Gate Box MGB2 Modular. Four additional sub-modules are available if you require more than the maximum of six controls in the locking module MGB2 Modular or if you need to include labeling. Simply insert these sub-modules into the extension module MCM.

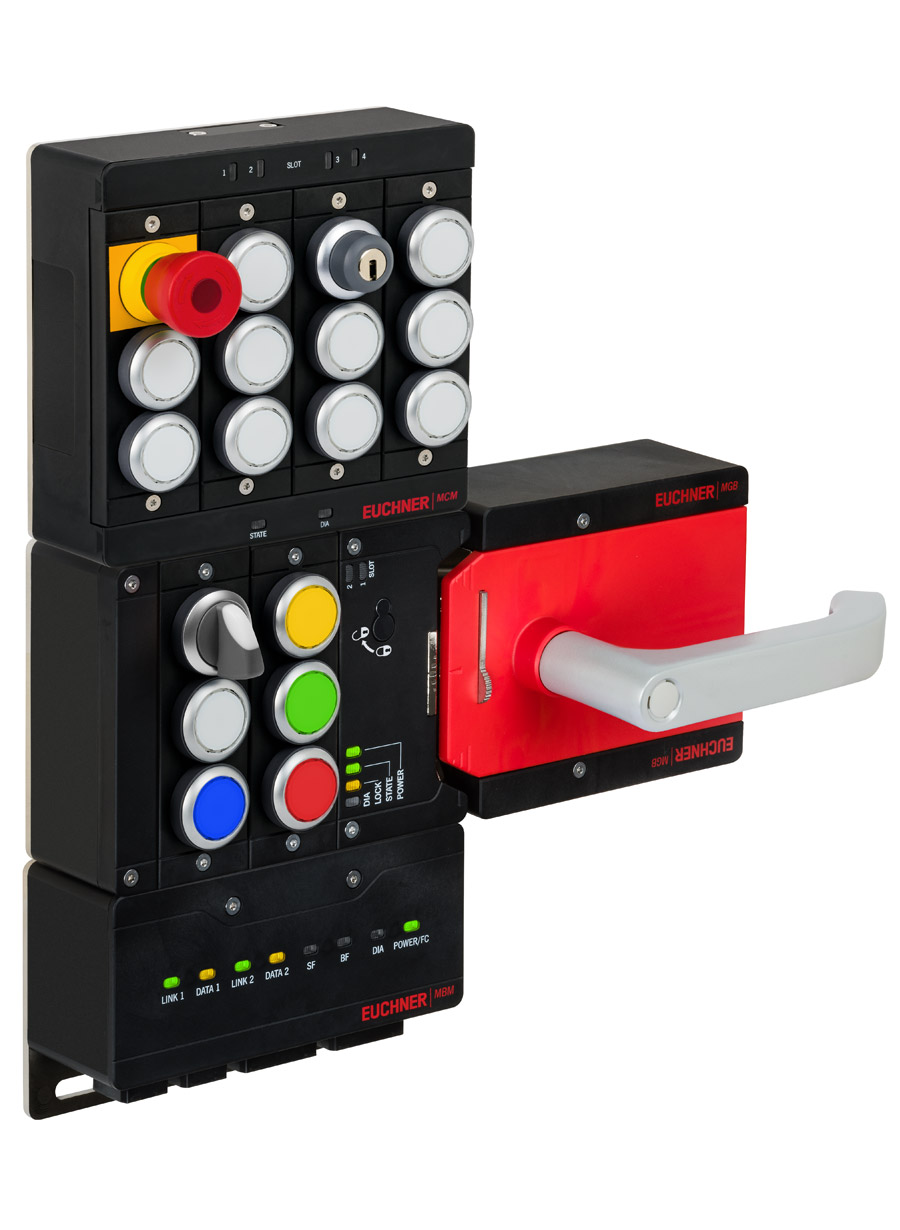

You can connect the MCM either directly to a bus module or as a functional expansion to a locking module.
