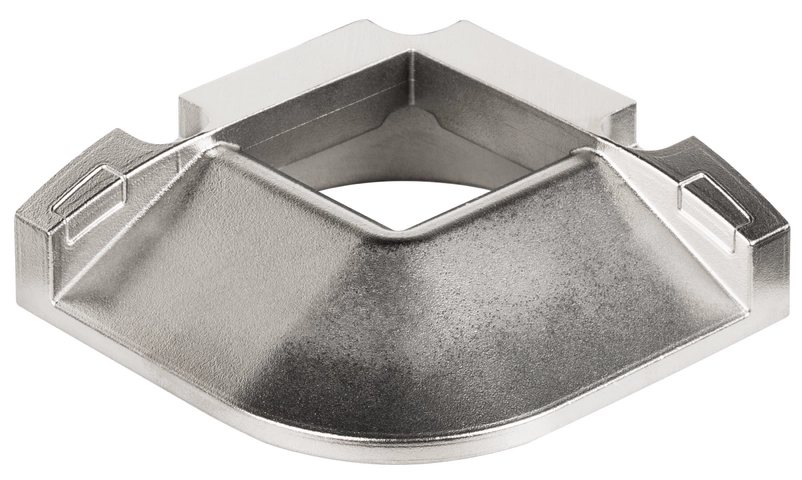

CET-WR-174215 (Order no. 174215)

Ramp for safety switch and read head CET

  • Ramp for CET product family
  • Wide opening angle 90°
  • Suitable for hinged doors with extremely small door radii up to 200 mm
CET-WR-174215 (Order no. 174215)

Description

Approach direction

Horizontal

Changing in 90° steps

Stepless approach of the actuator over the entire opening width of the ramp

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Material Stainless steel

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)

Ordering data

Ordernumber 174215
Item designation CET-WR-174215
Gross weight 0,16kg
Customs tariff number 85389099990
