AC-MC-SBB-F-A-172047 (Order no. 172047)
Choose content

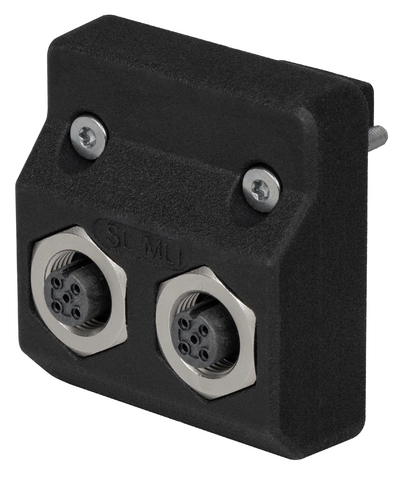

M12 plug connector(s) for connecting a signal tower and for connecting additional MLI modules (MGB2-MLI/MCM-MLI)
- Module connector MLI (M12)
- Number of pins (connectors): 2x 5-pin, socket
- with thread
- For connecting a signal tower and an additional module (MGB2-MLI/MCM-MLI) to an MCM
- Use only in connector with an MCM-MLI-..JJ-..
Description
Dimensional drawings
Technical data
Electrical connection values
| Connecting cable | |
| MLI | 5-pin, M12x1 |
| Rated voltage | 36 V |
| Rated voltage | 30 V |
| Nominal current | |
| at 40 °C | 4 A |
| Degree of contamination according to EN 60664-1 | 3 |
Mechanical values and environment
| Ambient temperature | -30 ... +55 °C |
| Connection 1 | |
| Connection type | 2x M4 screws |
| Connection type | Female plug |
| Number of pins | 5 |
| Degree of protection | IP65 (Only in the screwed tight state with the related mating components.) |
| Insertion cycles | 100 |
| Material | |
| Plug housing | Plastic |
| Connection 2 and 3 | |
| Connection type | Screw terminal |
| Connection type | Female plug |
| Type specification | M12 EN 61076-2-101 |
| Number of pins | 5 |
| Degree of protection | IP65 (Only in the screwed tight state with the related mating components.) |
| Insertion cycles | 100 |
| Material | |
| Plug lock | die-cast zinc, nickel plated |
| Plug housing | Plastic, die-cast zinc, nickel plated |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)
Ordering data
| Ordernumber | 172047 |
| Item designation | AC-MC-SBB-F-A-172047 |
| Gross weight | 0,11kg |
| Customs tariff number | 85389099990 |
