AM-P-171775 (Order no. 171775)

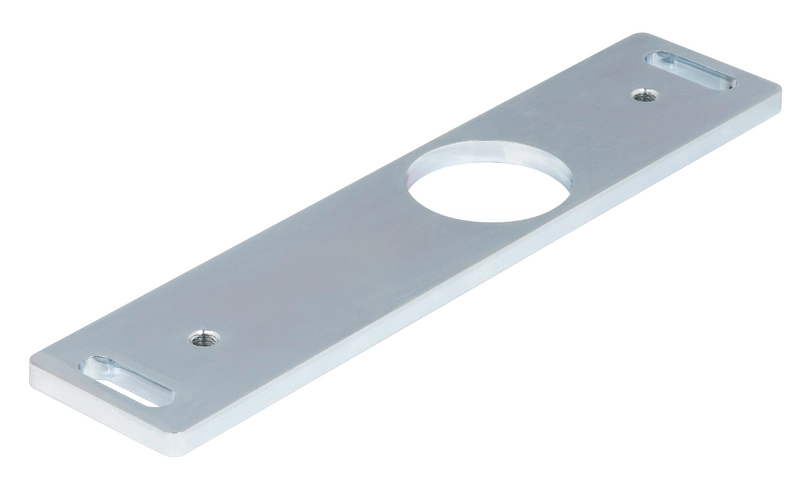

Mounting plate AM-P for safety switch CTS

  • For hinged doors with hinges on the left and right
  • Suitable for mounting on aluminum profiles of width 30 / 40 / 50 mm
  • With cut-out for escape release
  • Can be combined with bolt handle 126398
  • Galvanized steel
AM-P-171775 (Order no. 171775)

Description

Installation example

Mounting plates safety switch CTS and actuator

<p>Mounting plates safety switch CTS and actuator</p>

Hinged door

Combination with bolt handle 126398

Bolt installation horizontal

<p>Bolt installation horizontal</p>

Bolt installation vertical

<p>Bolt installation vertical</p>
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material Galvanized steel

Miscellaneous

Compatibility CTS

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)

Ordering data

Ordernumber 171775
Item designation AM-P-171775
Gross weight 0,222kg
Customs tariff number 85389099990
