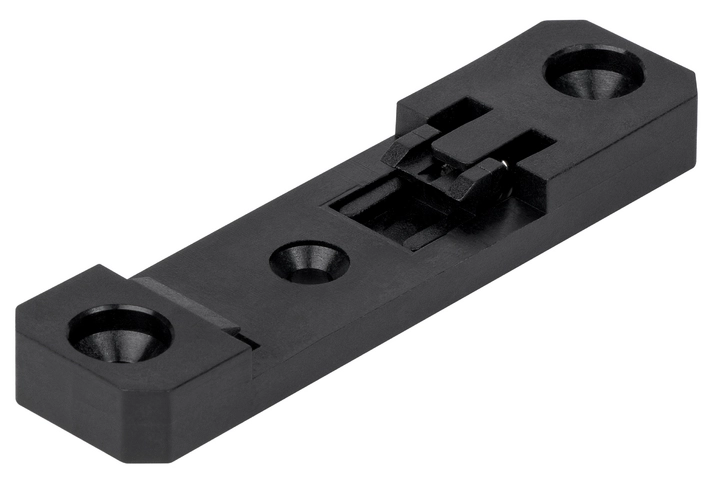

AM-SET-PS-169829 (Order no. 169829)

DIN rail adapter for evaluation unit EKS2

  • For mounting; assembly of the EKS2 evaluation unit in the control cabinet
  • Suitable for DIN mounting rail TS35 35 mm
AM-SET-PS-169829 (Order no. 169829)

Description

Accessories included in the scope of delivery

  • Mounting screws

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Material
DIN rail adapter Plastic, black
countersunk screw Tempered steel, galvanized-blue

Components included in the set

Included accessories 1x DIN rail adapter DIN fixation bar mounting; assembly clip RB-233, 2x countersunk screw with hexalobular socket Torx K35 x 16 WN1423

Ordering data

Ordernumber 169829
Item designation AM-SET-PS-169829
Gross weight 0,016kg
Customs tariff number 85389099990
