AM-SET-BL-169220 (Order no. 169220)

Rod lock for MGB2-H

  • Easy and quick mounting
  • Additional 3-point locking for double-leaf doors
  • Steel
  • Suitable for doors hinged on the right and left
AM-SET-BL-169220 (Order no. 169220)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Angle
2Locking bar
3stroke

Technical data

Mechanical values and environment

Material
ANGLE STEEL
BOLT ROD D8 STEEL

Components included in the set

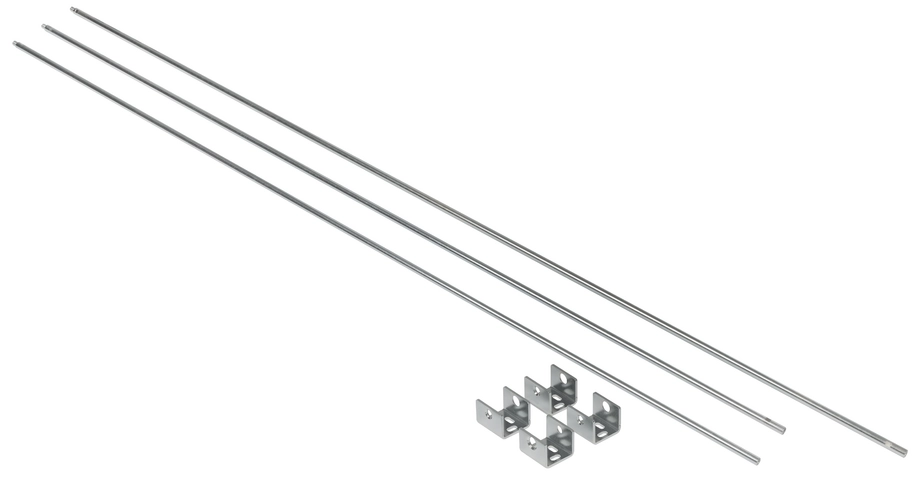

Included accessories 1x BOLT ROD D8 L1100, 2x BOLT ROD D8 L1000, 4x angle 3-POINT LOCKING

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)

Ordering data

Ordernumber 169220
Item designation AM-SET-BL-169220
Gross weight 1,8kg
Customs tariff number 73269098900
