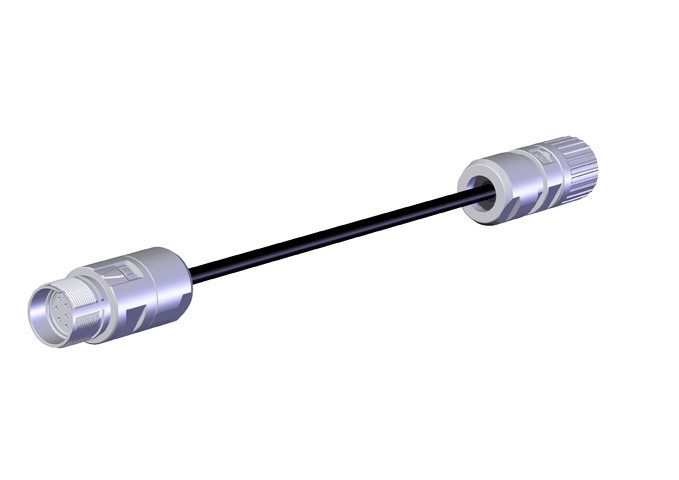

C-M23F12-12X014PU05,0-M23M12-169082 (Order no. 169082)

Connecting cable with plug connector M23, 12-pin, 5 m, straight

  • M23 coupling plug connector with socket contacts, 12-pin
  • M23 plug connector with male contacts, 12-pin
  • Straight plug connector
  • PUR cable
  • Cable length 5 m
C-M23F12-12X014PU05,0-M23M12-169082 (Order no. 169082)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Coupling plug connector with socket contacts
2Plug connector with male contacts

Technical data

Electrical connection values

Rated voltage 30 V

Mechanical values and environment

Conductor cross-section 12 x 0.14 mm²
Number of conductors 12
Dynamic bending radius ≥ 15 x cable diameter
Static bending radius ≥ 10 x cable diameter
Storage temperature -40 ... 80 °C
Cable type straight
Cable diameter 6 mm
Cable length 5 m
Drag chain suitability No
Cable ambient temperature (static) -40 ... 80 °C
Interlock
Plug connector Screw lock M23
Material
Sheath PUR
Connection 1
Connection type Coupling plug connector
Connection type Female plug
Plug connector designation PRO M23
Cable outlet straight
Number of pins 12
Degree of protection IP66 (in the inserted state)
Plug lock Screw lock M23
Connection 2
Connection type Plug connector
Connection type Male plug
Plug connector designation PRO M23
Cable outlet straight
Number of pins 12
Degree of protection IP67 (in the inserted state)
Plug lock Screw lock M23

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 169082
Item designation C-M23F12-12X014PU05,0-M23M12-169082
Gross weight 0,63kg
Customs tariff number 85444290900
ECLASS 27-06-03-04 Appliance cord (data cable)
