A-FLX-K-0B-RD-V03-168963 (Order no. 168963)

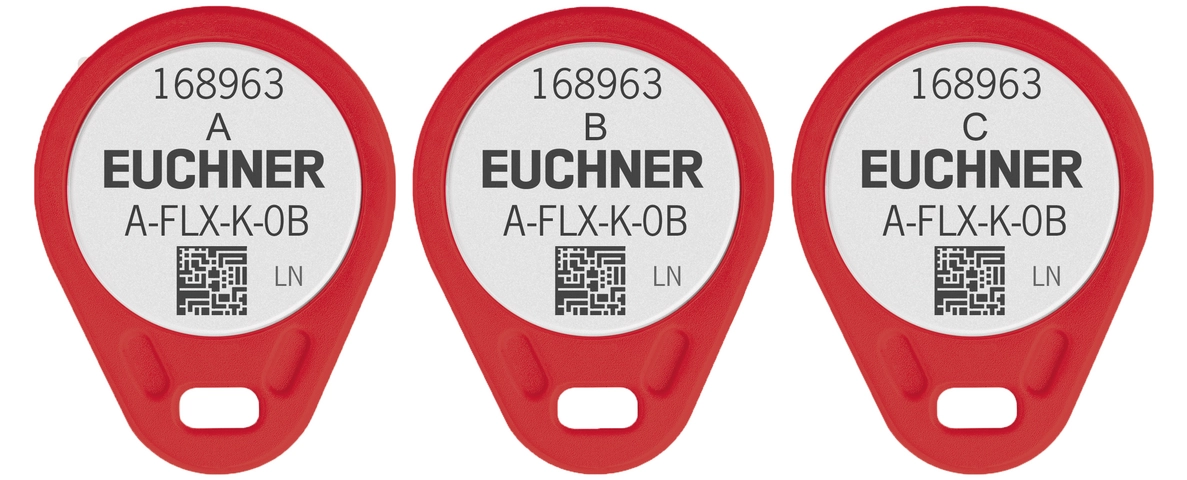

Key A-FLX-K-0B FlexFunction, 3 keys per packaging unit

  • Transponder coding
  • High coding level in accordance with EN 14119
  • Key type 0B: 3 identically coded keys per packaging unit
  • Key color red
A-FLX-K-0B-RD-V03-168963 (Order no. 168963)

Description

Coding

  • All keys belonging to the same packaging unit have the same coding.

  • Keys in different packaging units have different coding.

  • Only one teach-in operation is required on the key adapter CKS2 if using the keys from one packaging unit.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Active face

Technical data

Approvals

FCC_CKS2_2AJ58-17c_UL_us_E346349_1/1

Electrical connection values

Power supply Inductive via key adapter

Mechanical values and environment

Storage temperature -30 ... 70 °C
Degree of protection IP65/IP67
Ambient temperature -30 ... 70 °C
Material
Housing ABS, red

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 168963
Item designation A-FLX-K-0B-RD-V03-168963
Gross weight 0,015kg
Customs tariff number 85389099990
ECLASS 27-27-24-04 Actuator for safety-related proximity switch
