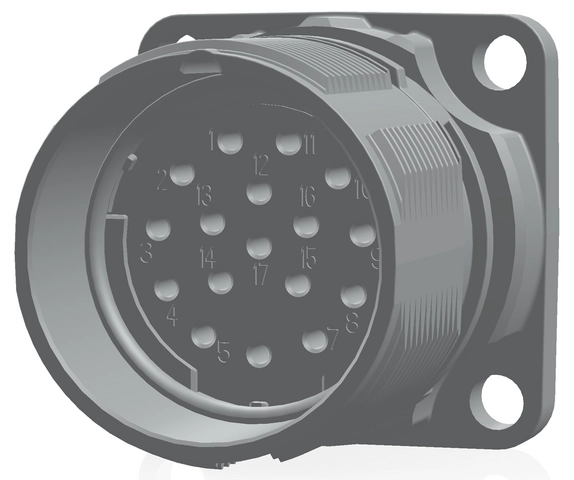

AC-SC-M23F17G-168392 (Order no. 168392)

Female flange connector, 17-pin

AC-SC-M23F17G-168392 (Order no. 168392)

Description

Flange connector

For front wall mounting for connection of enabling switches. Fitted with soldered contacts.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Electrical connection values

Connection cross section 0.08 ... 1.00 mm²
Rated voltage 125 V
Rated impulse voltage Uimp 2 kV
Nominal current max. 8 A

Mechanical values and environment

Connection type
Solder contact Plug connector M23x1
Connection type Female plug with external thread
Storage temperature -40 ... 125 °C
Number of pins 17
Degree of protection IP66/IP68 (In the inserted and screwed tight state)
Plug lock Screw locking
Ambient temperature -40 ... 125 °C
Material
Plug housing GD-Zn
Insulating body PBT

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 168392
Item designation AC-SC-M23F17G-168392
Gross weight 0,035kg
Customs tariff number 85444290900
