AC-YD-U0,2-SBB-161909 (Order no. 161909)

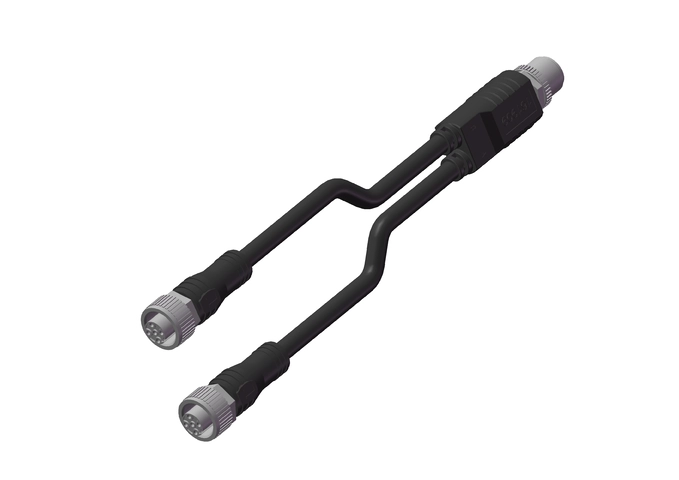

Y-distributor M12 with connection cable, connecting cable

  • For connection of guard locking solenoid CEM-C60 and safety switch CES-I-BP
  • Y-distributor M12 with connecting cable, 2 x 5-pin, 1 x 8-pin
  • Straight plug connector
  • PUR cable
  • Cable length 0.2 m
AC-YD-U0,2-SBB-161909 (Order no. 161909)

Description

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings
1Grip red

Connection examples

Connection examples

Connection examples

Connection examples
AFemale plug A red / CES
BFemale plug B black / CEM
CMale plug

Technical data

Electrical connection values

Rated insulation voltage Ui 300 V
Rated voltage 30 V
Rated impulse voltage Uimp 0.8 kV
Contact resistance 5 mΩ
Nominal current
At 40 °C 2 A
Test voltage
0.65 kV (Pin-pin; according to EN 61076-2-101)
1.5 kV (Pin-housing; according EN 60947-1)
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Storage temperature -25 ... 80 °C
Cable length
approx. 0.2 m
Sheath color Black
Degree of protection IP65/IP67 (Only in the screwed tight state with related mating components)
Insertion cycles >100
Ambient temperature -25 ... 80 °C
Material
Plug TPU, self-extinguishing
Sheath PUR
Plug housing TPU, self-extinguishing
Plug lock CuZn, nickel plated
Coupling TPU GF, self-extinguishing
Contact CuZn, nickel plated, and 0.15–0.20 μm, gold plated
Connection 2, 3
Connection type Plug connector M12
Connection type Female plug
Cable outlet straight
Number of pins 5
Plug lock Screw terminal
Connection 1
Connection type Plug connector M12
Connection type Male plug
Number of pins 8
Plug lock Screw terminal

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 161909
Item designation AC-YD-U0,2-SBB-161909
Gross weight 0,055kg
Customs tariff number 85364900
