A-B-A1-A1-P-161643 (Order no. 161643)

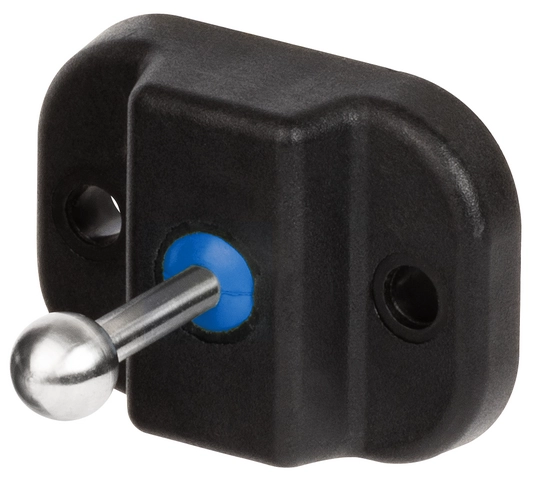

Actuator for safety switch CTM, hygienic version

  • Flexible ball actuator
  • Door radii from 150 mm
  • Hygienic version
A-B-A1-A1-P-161643 (Order no. 161643)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E155795_3/11

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Installation orientation any
Mechanical life 1 x 10⁶
Overtravel 2 mm
Degree of protection IP65/IP67/IP69/IP69K
Ambient temperature -20 ... +60 °C
Material
Carrier Reinforced thermoplastic
Seal FKM
Ball element Stainless steel
Locking force Fmax 1300 N
Locking force FZh 1000 N (Fzh = Fmax/1.3)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 161643
Item designation A-B-A1-A1-P-161643
Gross weight 0,02kg
Customs tariff number 85389099990
ECLASS 27-27-24-04 Actuator for safety-related proximity switch
