AM-C-SW5-V3-161348 (Order no. 161348)

Efficient protection against tampering for safety switch mounting

  • Plastic inserts for hexagon socket screws a/f 5
  • Efficient protection against tampering for safety switch mounting
  • The packaging includes inserts for 18 screws
AM-C-SW5-V3-161348 (Order no. 161348)

Description

Use of the plastic inserts

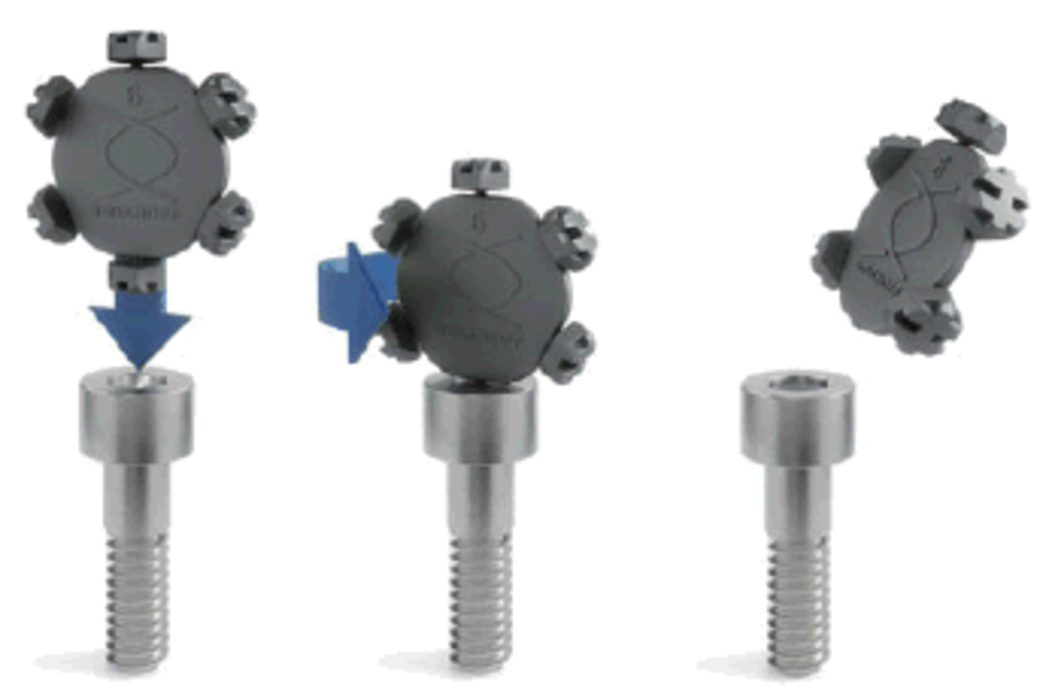

  • M6 screws can be used to mount the EUCHNER safety switch with guard locking (CET, CEM-C40, CTP...) on the machine. After the safety switch is mounted, a plastic insert can be inserted into the screw head drive of hexagon socket screws.
  • This makes it difficult to unscrew the hexagon socket screw using a screw wrench. This therefore provides efficient protection against tampering with the safety switch.
  • Suitable screw types (hexagon socket screw): DIN 912, ISO 4762, DIN 6912, ISO 7380-1 / 7380-2, DIN 7984, ISO 10642

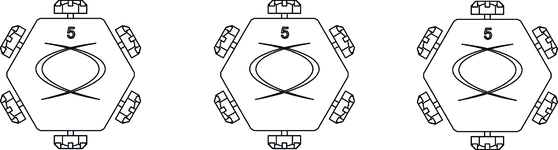

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material Plastic

Miscellaneous

Additional information AF5

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 161348
Item designation AM-C-SW5-V3-161348
Gross weight 0,007kg
Customs tariff number 85389099990
