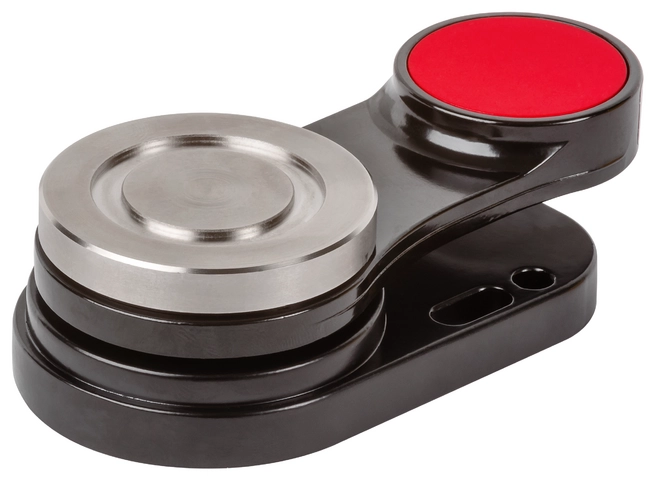

Actuator A-C40-158436
- Locking force 600 N
- Actuator adjustable in longitudinal direction
- Two safety screws M5x16 included
Description
Actuator
The anchor plate for the CEM actuator has spring mountings and can be tilted to an angle of +/-4°.
Therefore, when a misadjusted safety door is closed, the CEM actuator automatically adjusts itself to the surface of the solenoid. Subsequent adjustment of the safety door is no longer necessary. Even with a center offset of 5 mm (anchor plate in relation to solenoid) the full locking force is achieved.
Dimensional drawings
| 1 | Active solenoid plate face |
| 2 | Active transponder face |
Technical data
Approvals
Mechanical values and environment
| Installation orientation | active face opposite read head |
| Degree of protection | IP65/IP67 |
| Ambient temperature | -25 ... +55 °C |
| Material | |
| Anchor plate | Steel, nickel plated |
| Housing | Die-cast aluminum |
| Actuator installed | Plastic (PBT) |
| Angle offset | -4 ... +4 ° |
| Method of operation | inductive |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2539422
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001462
Version
Language
Size
0,1 MB
Other Documents
Approvals and certificates
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
1,0 MB
Sales documents
CAD data
Ordering data
| Ordernumber | 158436 |
| Item designation | A-C40-158436 |
| Gross weight | 0,218kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
