CES-A-BDN-06-158210 (Order no. 158210)
Choose content
Actuator CES-A-BDN-06
- Cylindrical design, Ø 6x26 mm
- Transponder coded, high coding level
Description

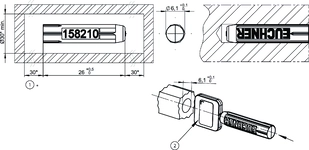

Dimensional drawings
| 1 | * Metal-free zone |
| 2 | Remove the tear-off lug before mounting |
Dimensional drawings
Technical data
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Storage temperature | -40 ... 70 °C |
| Degree of protection | IP65/IP67 |
| Ambient temperature | -40 ... 70 °C (Installation, mounting at room temperature) |
| Material | |
| Housing | Macromelt PA-based plastic |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 1,2 MB)
Single Documents
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,2 MB
Sales documents
面向未来的通信 – 工业4.0
Doc. no.
Version
Language
Size
面向未来的通信 – 工业4.0
Doc. no.
164814
Version
06-05/21
Language
Size
6,2 MB
Ordering data
| Ordernumber | 158210 |
| Item designation | CES-A-BDN-06-158210 |
| Gross weight | 0,011kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
