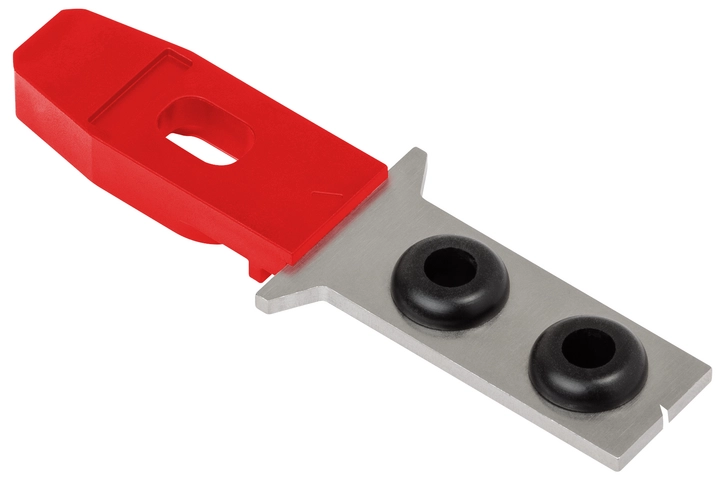

A-C-H-G-SSS-157696 (Order no. 157696)

Straight actuator for stainless-steel safety switch CTP

  • Stainless-steel version
  • Straight actuator
  • Two safety screws included
A-C-H-G-SSS-157696 (Order no. 157696)

Description

medium-resistant stainless-steel version

robust, tough and largely media resistant. The actuator consists of high-quality stainless steel, and it is designed for use with the stainless-steel CTP version.

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 300 mm. Safety screws prevent unscrewing of the actuators.

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings
12x non-removable screws M4 included

Technical data

Approvals

c_UL_us_E155795_3/11ECOLAB__CTP

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Installation orientation any
Mechanical life 1 x 10⁶
Overtravel 5 mm
Degree of protection IP67/IP69/IP69K
Ambient temperature -20 ... +55 °C
Material
Mounting Stainless steel
Bush NBR
Encapsulation fiber reinforced plastic, red
Sleeve Stainless steel
Locking force Fmax 3900 N
Locking force FZh 3000 N (FZH = FMAX/1.3)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 157696
Item designation A-C-H-G-SSS-157696
Gross weight 0,07kg
Customs tariff number 85389099990
ECLASS 27-27-24-04 Actuator for safety-related proximity switch
