ES-HWAV-0 (Order no. 157255)

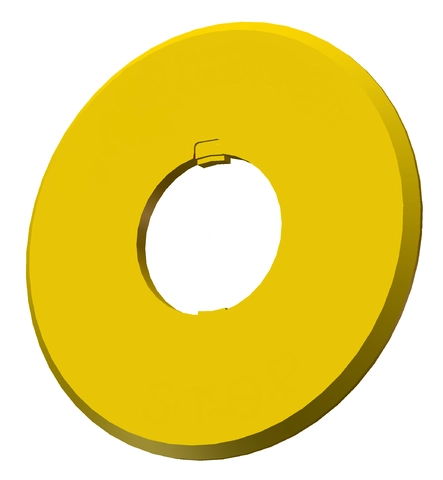

Emergency stop plate – blank – for 40 mm buttons on ES-XW devices

  • Emergency stop plate – blank – for 40 mm buttons on ES-XW devices
ES-HWAV-0 (Order no. 157255)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20

Mechanical values and environment

Storage temperature -25 ... 70 °C

Miscellaneous

Component type Emergency stop plate for 40 mm buttons on ES-XW devices without inscription.

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,7 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 157255
Item designation ES-HWAV-0
Gross weight 0,006kg
Customs tariff number 85389099990
ECLASS 27-37-12-44 EMERGENCY-STOP pushbutton, complete device
