AC-MC-SB-F-B-157025 (Order no. 157025)
Choose content

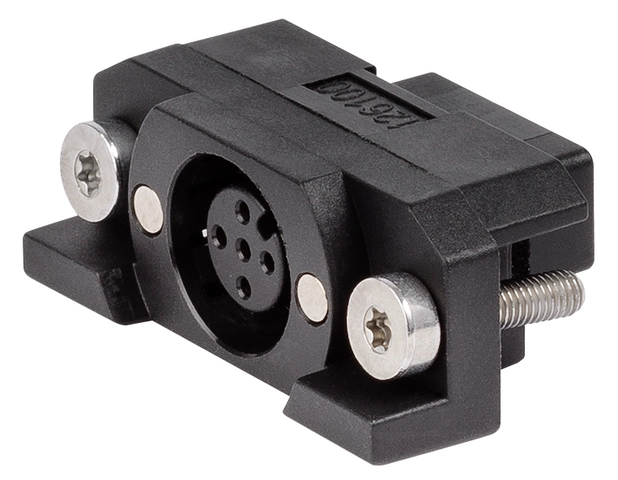

Module connector MLI, 5-pin, socket
- Module plug connector MLI, straight
- Directly pluggable (without thread)
- Number of pins: 5-pin, socket
Description
Dimensional drawings
Dimensional drawings
Technical data
Electrical connection values
| Rated voltage | 36 V |
| Rated voltage | 30 V |
| Nominal current | |
| at 40 °C | 4 A |
| Degree of contamination according to EN 60664-1 | 3 |
Mechanical values and environment
| Storage temperature | -30 ... 70 °C |
| Ambient temperature | -30 ... 55 °C |
| Connection 1 | |
| Connection type | 2x M4 screws |
| Connection type | Female plug |
| Number of pins | 5 |
| Degree of protection | IP65 (Only in the screwed tight state with the related mating component.) |
| Insertion cycles | 100 |
| Material | |
| Plug housing | Plastic |
| Connection 2 | |
| Connection type | Connector (unlocked) |
| Connection type | Female plug |
| Type specification | EUCHNER |
| Number of pins | 5 |
| Degree of protection | IP65 (Only in the inserted state with the related mating component.) |
| Insertion cycles | 100 |
| Material | |
| Plug housing | Plastic |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)
Single Documents
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
CAD data
Ordering data
| Ordernumber | 157025 |
| Item designation | AC-MC-SB-F-B-157025 |
| Gross weight | 0,02kg |
| Customs tariff number | 85389099990 |
