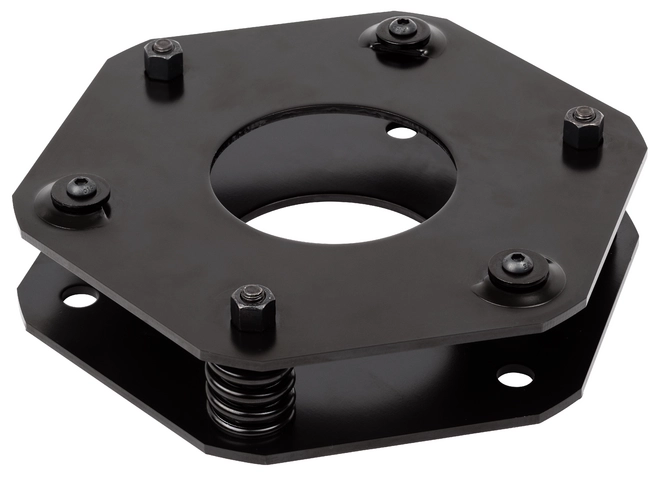

Socket for mounting pillars 202 x 224 x 55 mm
- Socket for mounting pillars
- Spring-mounted floor plate made of steel
- Improved compensation of unevenness
- Adjustable via adjusting screws
- Height 55 mm
Technical data
Mechanical values and environment
| Dimensions | 202x224x55 mm |
| Mounting type | Floor mounting with inserts/threaded bushings (included) (Plate: double, manually adjustable) |
| Storage temperature | -25 ... 70 °C |
