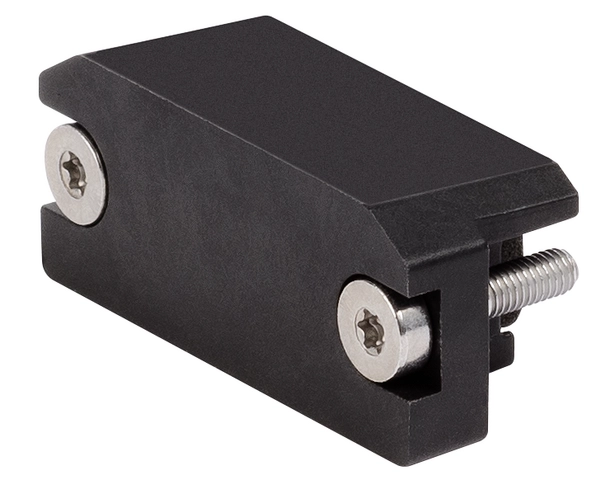

AC-MC-00-0-B-156718 (Order no. 156718)
Choose content
Cover for unused module connections
- Cover for unused connections
- incl. fixing screws
- incl. seal
Description
Dimensional drawings
Technical data
Electrical connection values
| Degree of contamination according to EN 60664-1 | 3 |
Mechanical values and environment
| Ambient temperature | -30 ... +55 °C |
| Material | Fiber glass reinforced plastic |
| Connection 1 | |
| Connection type | 2x M4 screws |
| Degree of protection | IP65 (Only in the screwed tight state with the specified base units.) |
Miscellaneous
| Color | black |
| Additional feature | |
| incl. fixing screws | |
| incl. seal |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)
Single Documents
Other Documents
Sales documents
Multifunctional door locking systems MGB2
Doc. no.
Version
Language
Size
Multifunctional door locking systems MGB2
Doc. no.
159039
Version
04-06/19
Language
Size
21,1 MB
Systèmes de gestion d‘accès multifonctionnels MGB2
Doc. no.
159050
Version
04-06/19
Language
Size
21,1 MB
Sistemas de cierre de puertas multifuncionales MGB2
Doc. no.
159051
Version
04-06/19
Language
Size
21,2 MB
Multifunktionale Türschließsysteme MGB2
Doc. no.
159037
Version
04-06/19
Language
Size
21,1 MB
CAD data
Ordering data
| Ordernumber | 156718 |
| Item designation | AC-MC-00-0-B-156718 |
| Gross weight | 0,02kg |
| Customs tariff number | 85389099990 |
