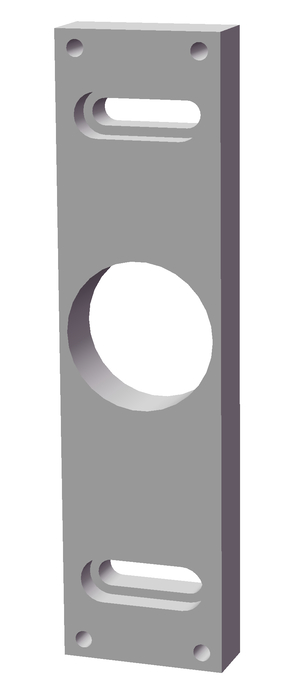

Mounting plates AM-P for safety switches CTP
- For vertical and horizontal mounting of safety switch CTP

Description
The mounting plates are used for mounting safety switches CTP on guards. The safety switches can be attached vertically or horizontally.

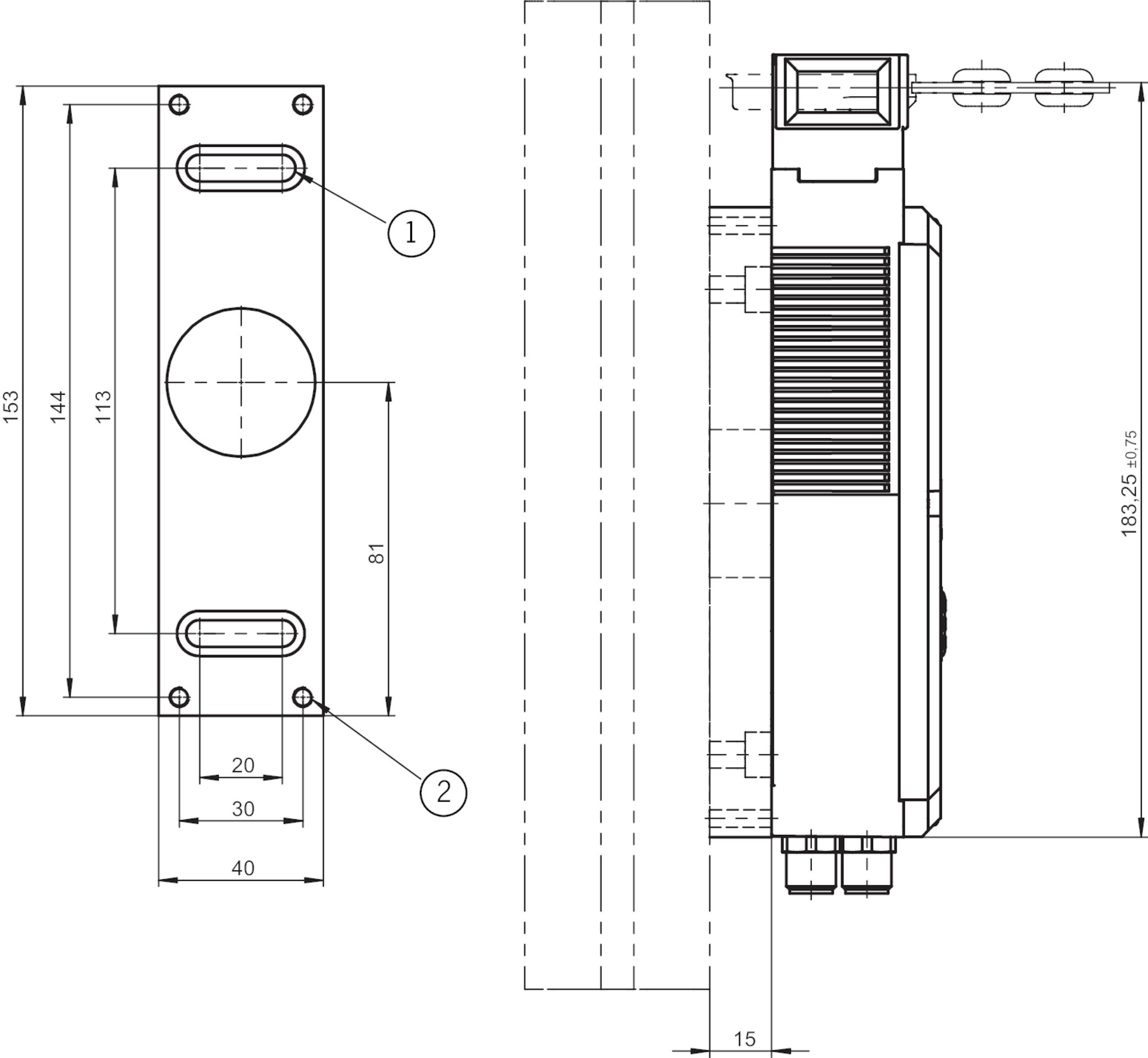

Dimension drawing

1 | For screw M6 (2x) EN ISO 4762 |
2 | For screw M5 (4x) |
Technical data
Mechanical values and environment
Weight | |
Net | 0,19 kg |
Other
Compatibility | For safety switches TP/TP-K/STP/CTP |
