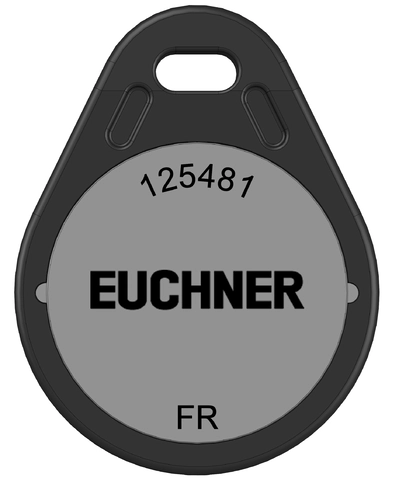

A-TI-001-125481 (Order no. 125481)

Parameterization key

A-TI-001-125481 (Order no. 125481)

Description

  • Parameterization key for setting the adhesive force
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Active face

Technical data

Electrical connection values

Power supply Inductive via read head

Mechanical values and environment

Degree of protection IP67
Ambient temperature -20 ... +70 °C
Material
Housing Plastic (PC), black

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 125481
Item designation A-TI-001-125481
Gross weight 0,006kg
Customs tariff number 85389099990
ECLASS 27-39-90-90 Property, access monitor (other, unspecified)
