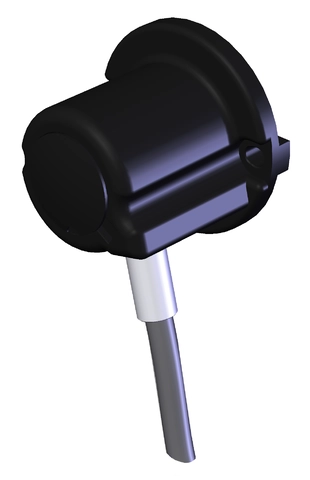

AE-B-A1-06,0-F-124770 (Order no. 124770)

Wire front release (bowden)

  • Can be used as escape release or emergency release
  • automatic return
  • Rope length 6 m (without sheath)
AE-B-A1-06,0-F-124770 (Order no. 124770)

Description

Flexible routing of the pull wire permits release of the guard locking in inaccessible installation situations.

  • Use as emergency unlocking if the safety switch is mounted in an inaccessible position
  • Use as escape release for unlocking the guard locking from the danger zone
  • Can be retrofitted on all safety switches of series CTP/CTA/TP/STP/STA
  • Order rope sheath separately
Dimension drawing
Dimension drawing

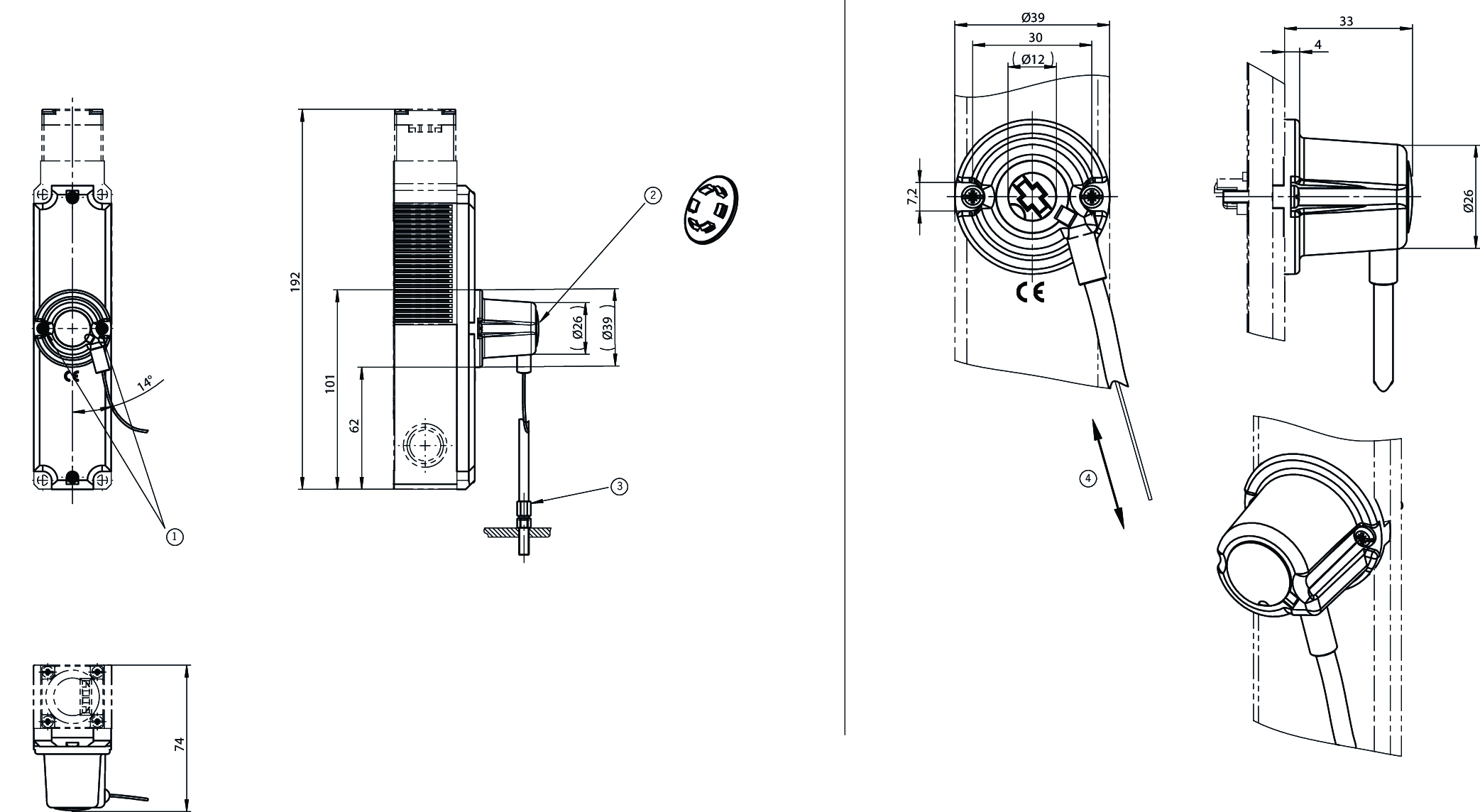

Dimensional drawings

Dimensional drawings
1Mounting by means of the screw included, length: 17mm!
2Cover
3Adjusting screw M5x17.5 for fixing the hose cable (included).
4A stroke of min. 17 mm is necessary for safe release.

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Rope length
Pull wire 6 m (Rope without outer sleeve)
Material
Housing Plastic

Miscellaneous

Detent mechanism no, resetting

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,4 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 124770
Item designation AE-B-A1-06,0-F-124770
Gross weight 0,091kg
Customs tariff number 85389099990
