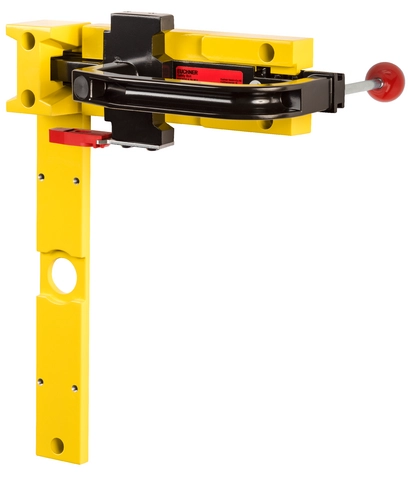

Bolt BTC-CTP with escape release for safety switch CTP
- Aluminum bolt
- For doors hinged on the left or right
- Lever for escape release from the danger zone
- Pushbutton in open position
- Can be locked in open position with padlocks
- Actuator included
Description
Advantages
- Robust construction
- Easily fitted to standard aluminum profiles and machine covers by screw connection
- Distinctive yellow color for easy recognition
- No additional door handle necessary
Notes
- The bolts are suitable for series CTP
- Order safety switch separately
Special features
- bolt with detent mechanism
- The bolt latches in open position to prevent unintentional closing of the bolt. Unlocked by pressing the knob.
Dimension drawing
| 1 | Opening |
| 2 | Safety guard frame (40x40) |
| 3 | Door hinged on the right |
| 4 | Bolt can be used for doors hinged on the right or left. Bolt latches in open position. |
Technical data
Mechanical values and environment
| Material | |
| Handle | Aluminum |
| Guide strips | Aluminum |
| Base plate | Aluminum |
| Switch bracket | Aluminum |
| Weight | |
| Net | 1 kg |
| Escape release | Yes |
| Number of safety switches that can be fitted | 1 |
Other
| Detent mechanism | Bolt detent mechanism |
