BTC-CTP-S-TH-00-X (Order no. 123659)

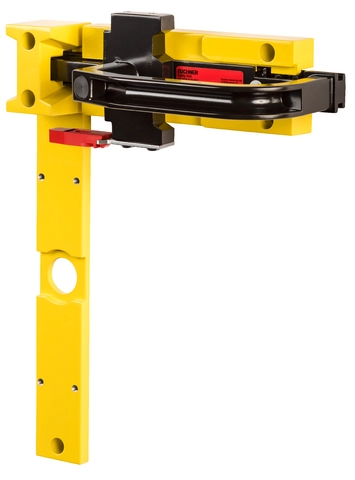

Bolt BTC-CTP-S for safety switch CTP

  • Aluminum bolt
  • For doors hinged on the left or right
  • Can be locked in open position with padlocks
  • Actuator included
BTC-CTP-S-TH-00-X (Order no. 123659)

Description

Advantages

  • Robust construction
  • Easily fitted to standard aluminum profiles and machine covers by screw connection
  • Distinctive yellow color for easy recognition
  • No additional door handle necessary

Notes

  • The bolts are suitable for series CTP
  • Order safety switch separately
Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing
1Opening
2Safety guard frame (40x40)
3Door hinged on the right
4Bolt can be used for doors hinged on the right or left

Technical data

Mechanical values and environment

Material
Switch bracket Aluminum
Handle Aluminum
Guide strips Aluminum
Base plate Aluminum
Weight
Net 1 kg
Escape release No
Number of safety switches that can be fitted 1

Other

Detent mechanism No
