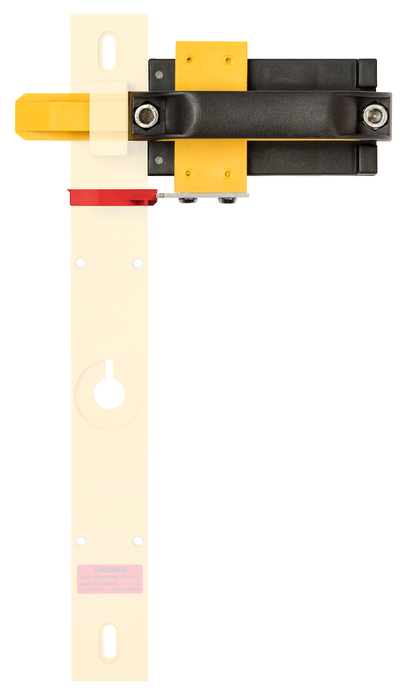

Bolt CTP-GFK for safety switch CTP
- Fiber glass reinforced plastic bolt
- For doors hinged on the left or right
- Can be locked in open position with padlocks
- Actuator included
Description
Advantages
- Light, compact construction
- Easily fitted to standard aluminum profiles and machine covers by screw connection
- Distinctive yellow color for easy recognition
- No additional door handle necessary
Notes
- Functions only in conjunction with switch bracket TP/STP GFK
- Order safety switch separately
- Order switch bracket separately
Dimension drawing
| 1 | Approach direction A |
| 2 | For doors hinged on the left the actuator is to be mounted on this side and the approach direction for the switch and bolt changed. |
| 3 | Cut-out for switch with escape release |
| 4 | Door gap |
| 5 | Safety guard frame (40x40) |
| 6 | Door radius |
| 7 | Door hinged on the right |
Technical data
Mechanical values and environment
| Material | |
| Guide strips | Plastic |
| Handle | Plastic |
| Base plate | Plastic |
| Switch bracket | Plastic |
| Weight | |
| Net | 0,5 kg |
| Escape release | No |
| Number of safety switches that can be fitted | 1 |
Other
| Detent mechanism | No |
