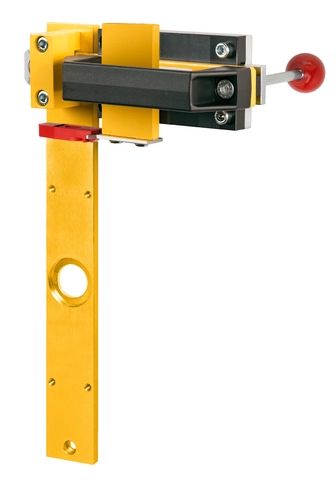

RIEGEL CTP-ACF-123655 (Order no. 123655)

Bolts with escape release for safety switch CTP

  • Steel bolt
  • Lever for escape release from the danger zone
  • For doors hinged on the right or left
  • Detent knob in open position
  • Can be locked in open position with padlocks
  • Actuator included
RIEGEL CTP-ACF-123655 (Order no. 123655)

Description

Advantages

  • Robust construction
  • Easily fitted to standard aluminum profiles and machine covers by screw connection
  • Distinctive yellow color for easy recognition
  • No additional door handle necessary

Special features

  • Bolt with detent mechanism: Bolt latches in open position to prevent unintentional closing

Notes

  • The bolts are suitable only for series CTP
  • Order safety switch separately
Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing
1View B
2On the actuation of the escape release for the switch, the actuator must not be subjected to a tensile load (e.g. due to strain on the doors or pulling the lever on the bolt)
3Safety switch CTP approach direction A
4Included loose
5Door hinged on the right
6Safety guard frame (40x40)
1)Bolt with detent mechanism. Engages in open position. (Prevents unintentional closing of the bolt) Unlocked by pulling the detent knob upward.

Technical data

Mechanical values and environment

Material
Guide strips Plastic
Base plate Galvanized steel
Switch bracket Steel powder-coated
Handle Plastic
Weight
Net 2 kg
Escape release Yes
Number of safety switches that can be fitted 1

Other

Detent mechanism open position Bolt detent mechanism
