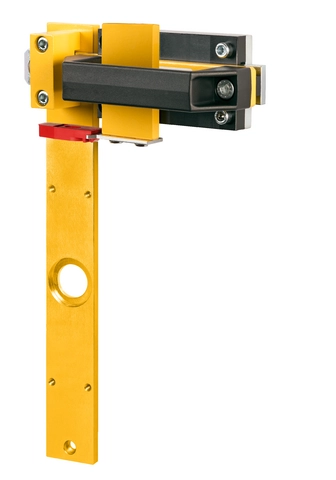

RIEGEL CTP-AC-123653 (Order no. 123653)

Bolt for safety switch CTP, CTA

  • Steel bolt
  • For doors hinged on the right and left
  • Can be locked in open position with padlocks
  • Actuator included
RIEGEL CTP-AC-123653 (Order no. 123653)

Description

Benefits

  • Robust construction
  • Easily mounted to standard aluminum profiles and machine covers by screw connection
  • Distinctive yellow color for easy recognition
  • No additional door handle necessary

Notes

  • The bolts are suitable for series CTP and CTA.
  • Order safety switch separately
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1View B
2Attention! Bolt is not allowed to be used with an escape release!
3Safety switch CTP approach direction A
4Door hinged on the right
5Safety guard frame (40x40)

Technical data

Mechanical values and environment

Approach direction A or C
Number of safety switches that can be mounted 1
Escape release none
Material
Guide strips Plastic
Switch bracket Steel powder-coated
Base plate Galvanized steel
Handle Plastic

Miscellaneous

Detent mechanism none

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 123653
Item designation RIEGEL CTP-AC-123653
Gross weight 2,146kg
Customs tariff number 83014090000
