C-M12M05-05X034PV05,0-MA-123440 (Order no. 123440)

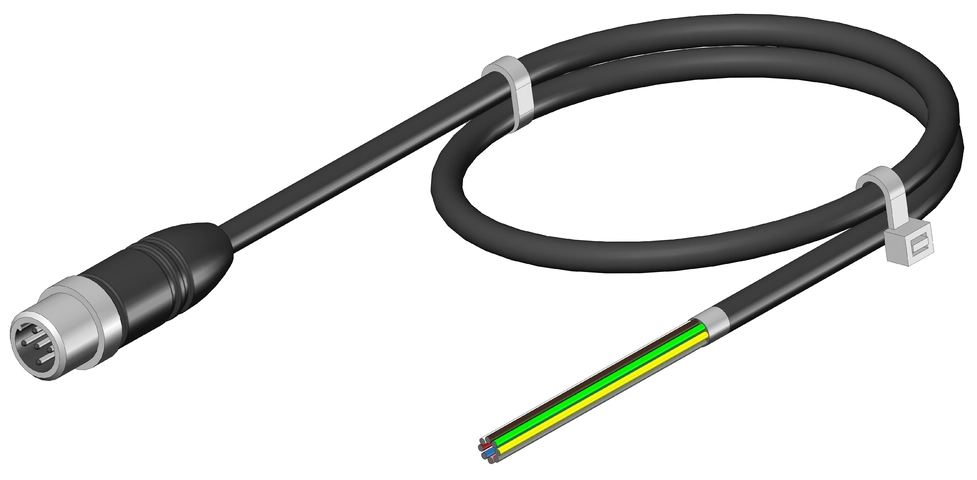

Connecting cable with plug connector M12, 5 m

  • 5-pin M12 male plug, straight
  • PVC cable
  • Cable length 5 m
  • With flying lead
C-M12M05-05X034PV05,0-MA-123440 (Order no. 123440)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E357602_V2

Electrical connection values

Rated voltage 60 V
Rated impulse voltage Uimp 1.5 kV
Nominal current
at 40 °C 4 A
specific inductance 0.53 mH/km
specific capacitance 100 nF/km
specific conductor resistance 58 Ω/km
Overvoltage category according to IEC EN 60664-1 III
Connection 1
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Conductor identification Color code
Conductor cross-section 0.34 mm²
Number of conductors 5
Dynamic bending radius 15 x cable diameter
Static bending radius 5 x cable diameter
Fire behavior flame retardant according to UL-Style 2464
Cable type straight
Cable diameter
approx. 5.9 mm
Cable length 5 m
Sheath color black
Drag chain suitability no
Cable ambient temperature (dynamic) -5 ... +80 °C
Cable ambient temperature (static) -25 ... +80 °C
UV resistance moderately UV resistant
Material
Conductor insulation PVC
Sheath PVC
Conductor Cu flexible wire bare
Connection 2
Conductor end Sheath stripped
Connection type flying lead
Connection 1
Connection type Plug connector M12x1
Connection type Male plug
Tightening torque 0.5 Nm
Cable outlet straight
Number of pins 5
Degree of protection IP67 (in the inserted state)
Plug lock Screw connection
Insertion cycles 100
Material
Plug lock CuZn, nickel plated
Plug housing TPU

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 123440
Item designation C-M12M05-05X034PV05,0-MA-123440
Gross weight 0,29kg
Customs tariff number 85444290
ECLASS 27-06-03-04 Appliance cord (data cable)
