AC-SP-A1-SA-123340 (Order no. 123340)

Strapping plug

  • Strapping plug

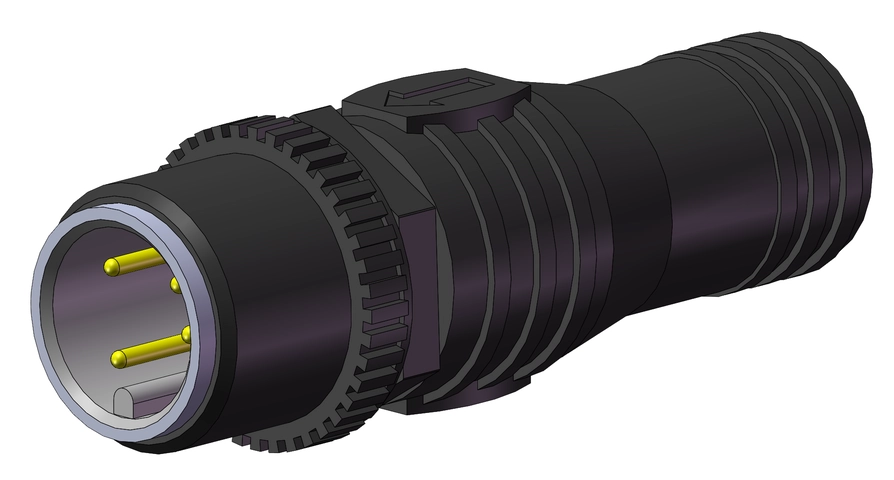

  • M12 male plug, 4-pin
AC-SP-A1-SA-123340 (Order no. 123340)

Description

Bypassing using strapping plug AC-SP-A1-SA-123340 if connection X1-X4 of passive distribution module AC-DP-04-SA-120861 is not to be used.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Electrical connection values

Rated insulation voltage Ui 300 V
Rated voltage 30 V
Rated impulse voltage Uimp 0.8 kV
Contact resistance ≤5 mΩ
Nominal current
at 40 °C 2 A
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Connection type Plug connector M12
Connection type Male plug
Type specification M12 EN 61076-2-101
Storage temperature -25 ... 80 °C
Cable outlet straight
Number of pins 4 (connection compatible with 8-pin female plug)
Degree of protection IP65/IP67 (Only in the screwed tight state with the relating mating components.)
Plug lock Screw terminal
Insertion cycles 100
Ambient temperature -25 ... 80 °C
Material
Coupling contact carrier TPU GF, self-extinguishing
Plug contact carrier TPU, self-extinguishing
Plug lock CuZn, nickel plated
Contact CuZn, nickel and gold plated
Plug housing TPU, self-extinguishing

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,3 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 123340
Item designation AC-SP-A1-SA-123340
Gross weight 0,018kg
Customs tariff number 85389099990
