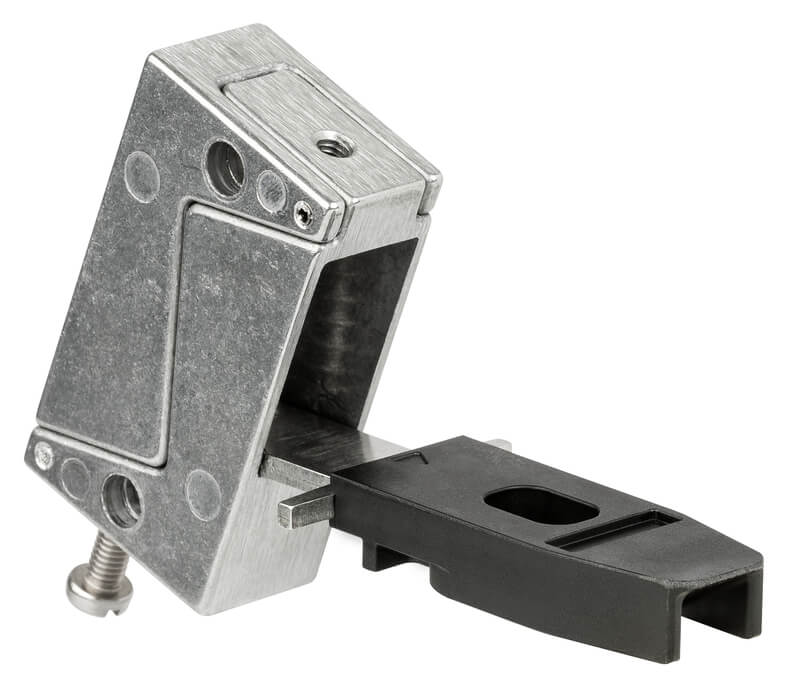

Hinged actuator for safety switch CTP
- Hinged actuator for doors hinged at the top
- Two safety screws included

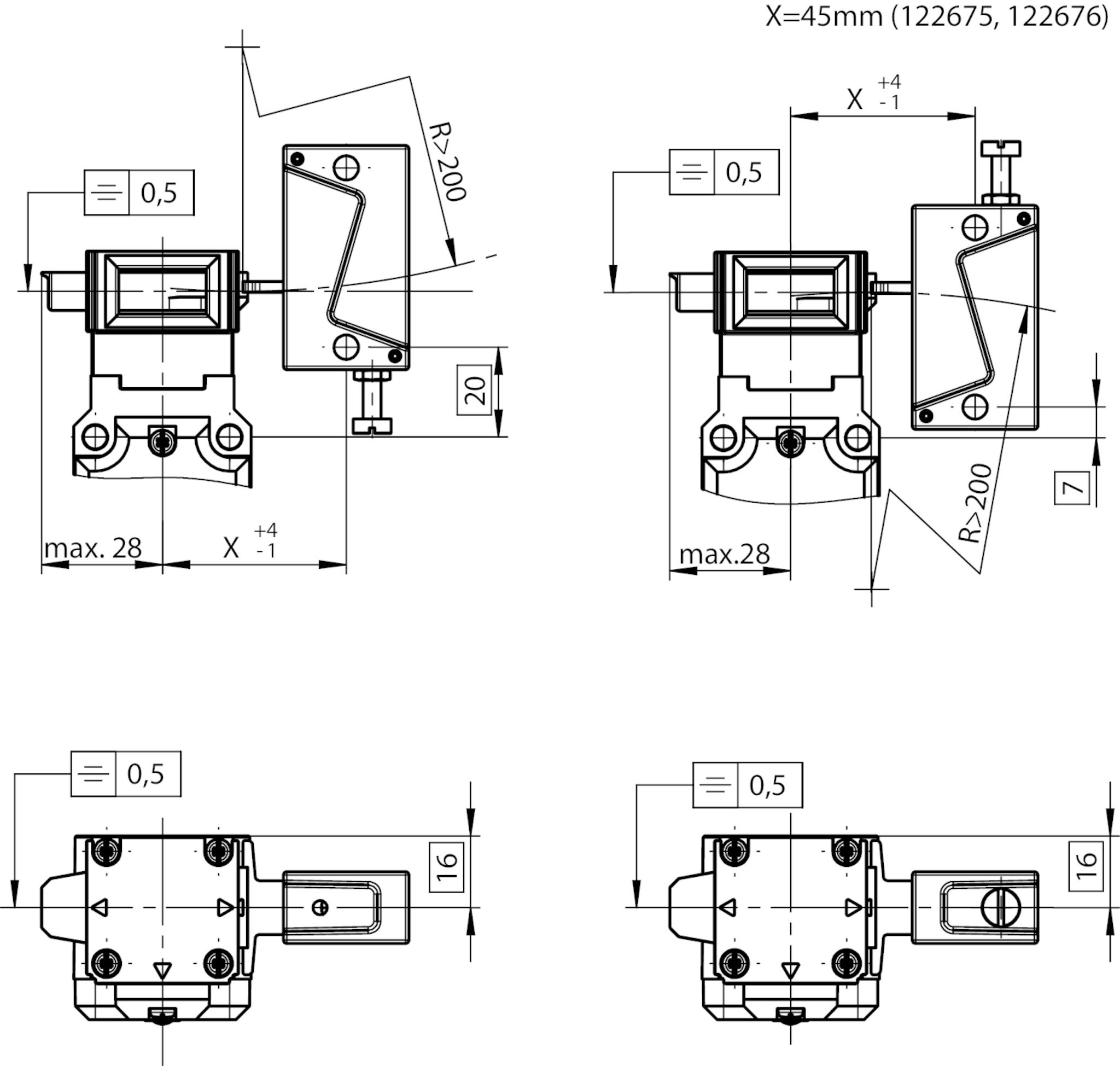

For door radii less than 1,000 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuator head. Depending on the movement of the guard, the actuator must be selected for left, right, top or bottom.
The safety screws included can be inserted with a normal tool, but cannot be removed again.
Mechanical values and environment
|Encapsulation||Fiber reinforced plastic, black|
|Mounting range||Die-cast aluminum|
|Ambient temperature||-20 ... 55 °C|
|Degree of protection||IP67/IP69|
|Mechanical life||1 x 106|
|Locking force Fmax||2600 N|
|Locking force FZh||2000 N (Fzh = Fmax/1.3)|
Electrical connection ratings
|Power supply||Inductive via read head|
