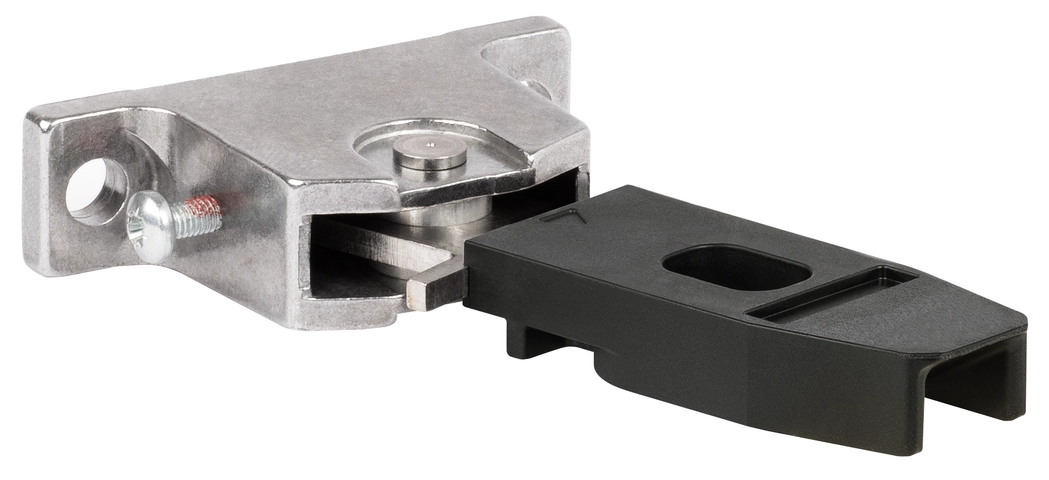

Hinged actuator for safety switch CTP
- Hinged actuator for doors hinged on the left
- Two safety screws included
Description
Hinged actuators
For door radii less than 1,000 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuator head. Depending on the movement of the guard, the actuator must be selected for left, right, top or bottom.
The safety screws included can be inserted with a normal tool, but cannot be removed again.
Dimension drawing
Dimension drawing
Technical data
Mechanical values and environment
| Housing material | |
| Encapsulation | Fiber reinforced plastic, black |
| Mounting | Die-cast aluminum |
| Weight | 0,04 kg |
| Ambient temperature | -20 ... 55 °C |
| Degree of protection | IP67/IP69 |
| Mechanical life | 1 x 106 |
| Installation orientation | Any |
| Locking force Fmax | 2600 N |
| Locking force FZh | 2000 N (Fzh = Fmax/1.3) |
| Overtravel | 5 mm |
Electrical connection ratings
| Power supply | Inductive via read head |
Accessories
