A-C-H-W-SST-122668 (Order no. 122668)

Bent actuator for safety switches CTP

  • Actuator bent at bottom
  • Two safety screws included
A-C-H-W-SST-122668 (Order no. 122668)

Description

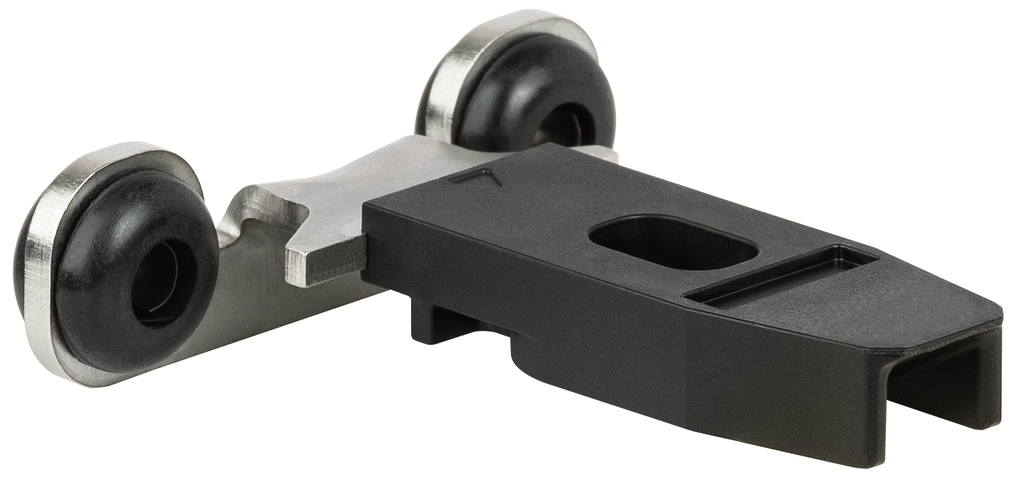

Actuator bent at bottom

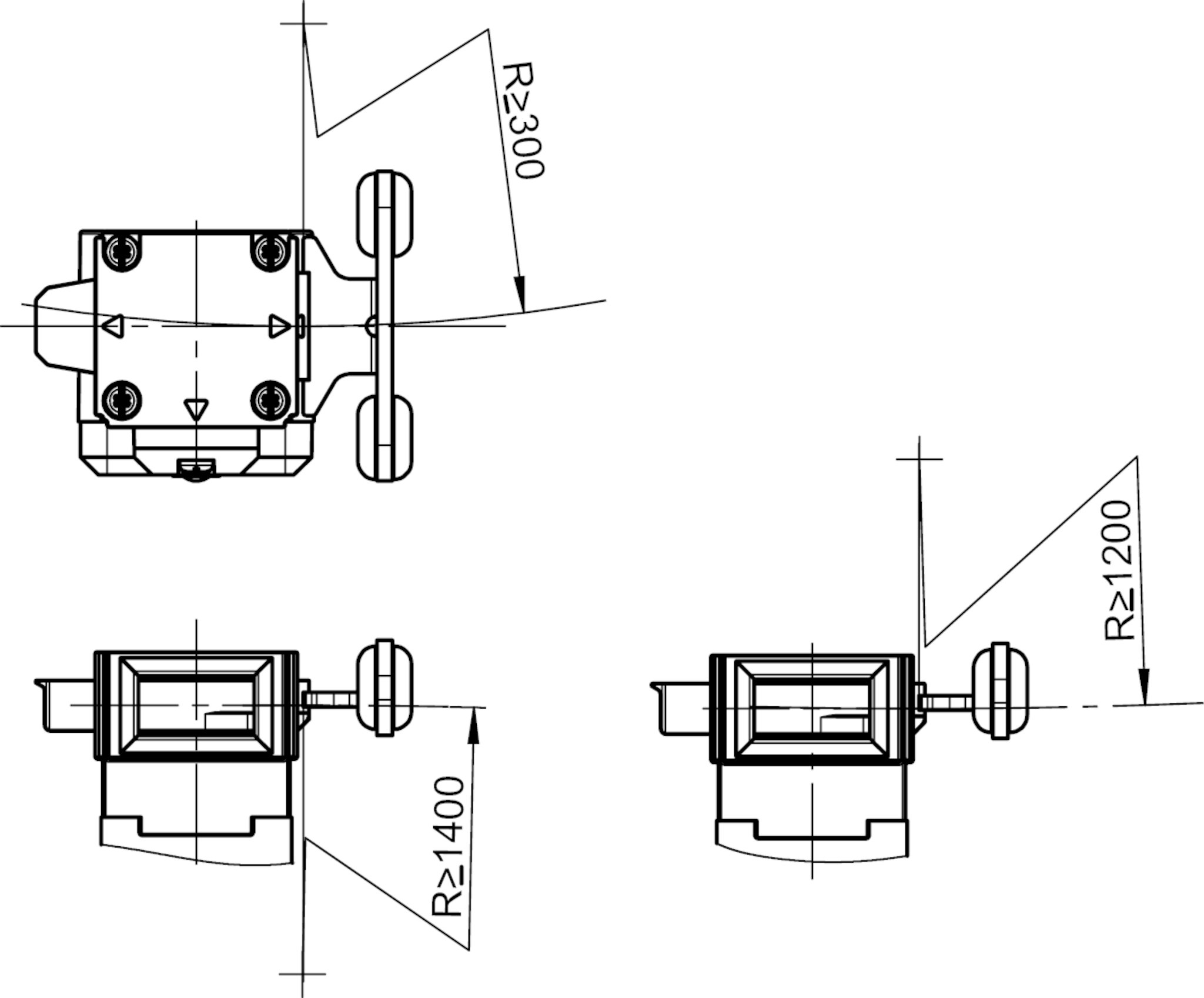

The angled actuator is used on sliding doors or hinged doors with door radii greater than 300 mm. Safety screws prevent unscrewing of the actuators.

The safety screws included can be inserted with a normal tool, but cannot be removed again.

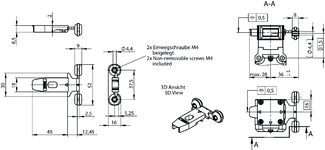

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Technical data

Mechanical values and environment

Housing material
Mounting Stainless steel
Bush NBR
Encapsulation Fiber reinforced plastic, black
Weight 0,03 kg
Ambient temperature -20 ... 55 °C
Degree of protection IP67/IP69
Mechanical life 1 x 106
Installation orientation Any
Locking force Fmax 1500 N
Locking force FZh 1100 N (Fzh = Fmax/1.3)
Overtravel 5 mm

Electrical connection ratings

Power supply Inductive via read head
