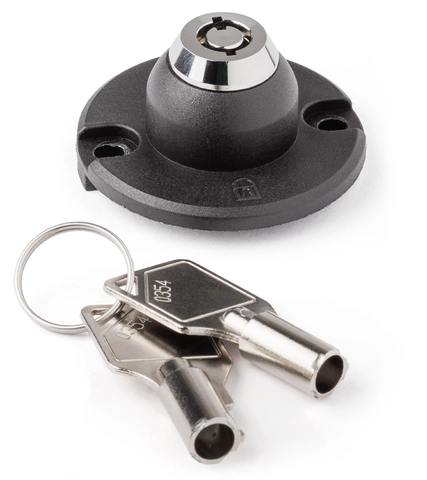

Lock for auxiliary release for safety switch CTP/CTA/TP/STP
- Identical locking
- Key removable in “locked” position
Description
The lock is used in combination with safety switch CTP/TP/STP. The auxiliary key release enables authorized personnel to actuate the auxiliary release using the related key. The unlocking mechanism holds the solenoid in the “unlocked” position. 2 screws are used to fix the lock to the cover of the safety switch (above the auxiliary release).
- Order safety switch CTP/TP/STP separately
- 2 keys included
- Every safety switch of the series CTP/TP/ STP can be upgraded to include a lock
Dimension drawings
| 1 | Direction of rotation |
| 2 | Released |
| 3 | locked |
Dimension drawings
| 1 | Auxiliary release (basic position) |
| 2 | Locking screw |
Technical data
Mechanical values and environment
| Removal position | one (0°) |
| Material | Plastic (Lock: metal) |
| Closing type | identical locking |
Miscellaneous
| C number | |
| C2416 | Key can be removed only in the locked position |
