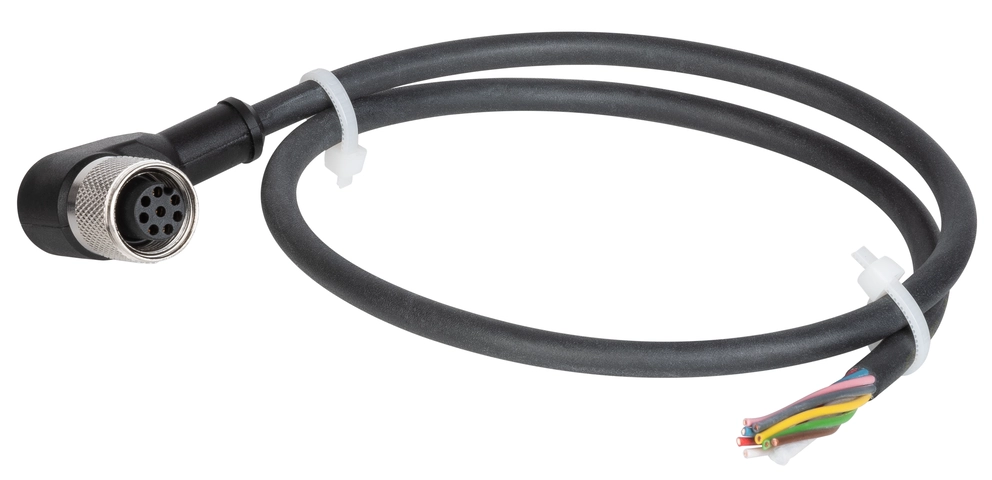

C-M12F08-08X025PU20,0-MA-120999 (Order no. 120999)

Connection cable with angled plug connector M12, 8-pin, 20m

  • M12 female plug, 8-pin
  • Angled plug connector
  • Cable outlet C (left)
  • PUR cable
  • Cable length 20 m
  • With flying lead
C-M12F08-08X025PU20,0-MA-120999 (Order no. 120999)


Dimension drawing
Dimension drawing
Terminal assignment
Terminal assignment

Dimension drawing

Dimension drawing
1Cable socket M12x1 / 8-pin

Terminal assignment

Terminal assignment
Pin 1= WH
Pin 2= BN
Pin 3= GN
Pin 4= YE
Pin 5= GY
Pin 6= PK
Pin 7= BU
Pin 8= RD

Technical data

Mechanical values and environment

Cable ambient temperature (dynamic) -25 ... +80 °C
Cable ambient temperature (static) -25 ... +80 °C
Dynamic bending radius 10 x cable diameter
Static bending radius 5 x cable diameter
Sheath material PUR
Conductor insulation material PP
Drag chain suitability Yes
Number of conductors 8
Type of cable straight
Cable length 20 m
Cable diameter
Approx. 5,15 mm
Conductor cross-section 0.25mm²
Conductor identification Color code
Sheath color Black
Connection 1
Tightening torque 0,5 Nm
Degree of protection IP67
Plug lock material CuZn nickel-plated
Connection Plug connectors M12x1
Connection type Female plug
Cable outlet Angle
Number of pins 8
Plug lock Screw connection
Plug housing material TPU
Connection 2
Conductor end Sheath stripped
Connection Flying lead

Electrical connection ratings

Operating voltage 30 V
Degree of contamination according to EN 60664-1 3
