C-M08F03-02X025PU25,0-ES-120280 (Order no. 120280)

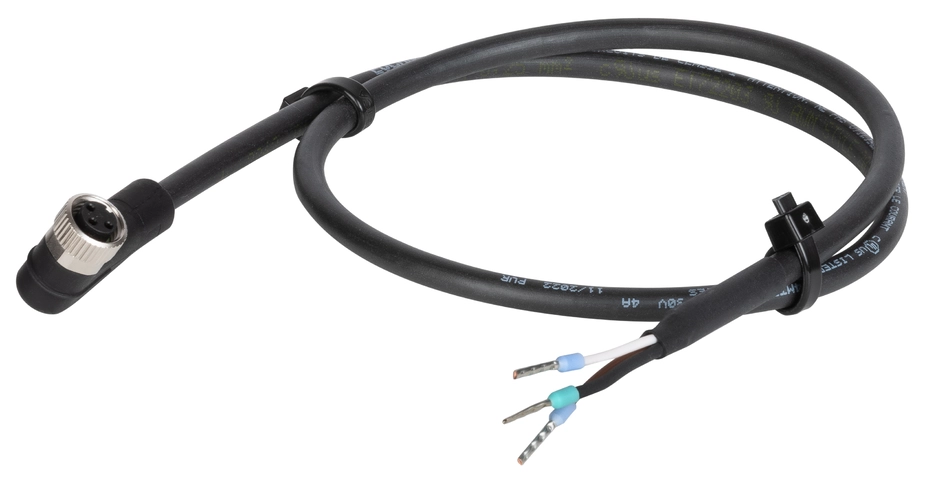

Connecting cable with angled plug connector M8, 3-pin, 25m

  • M8 female plug, 3-pin
  • Angled plug connector
  • Cable exit C (left)
  • PUR cable
  • Cable length 25 m
  • With flying lead
C-M08F03-02X025PU25,0-ES-120280 (Order no. 120280)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings
ACable outlet A (right)
CCable outlet C (left)

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

c_UL_us_E357602_2c_UL_us_E155795_3/2

Electrical connection values

Rated voltage
DC 60 V
Nominal current
at 25 °C 4 A
Cable shielding yes (Cu braid, coverage approx. 85%)
Connection 2
Degree of contamination according to EN 60664-1 3
Connection 1
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Conductor identification Color code
Conductor cross-section 0.25 mm²
Number of conductors 2
Tightening torque 0.4 Nm
Dynamic bending radius 7.5 x cable diameter
Static bending radius 5 x cable diameter
Halogen-free yes
Cable type straight
Cable diameter
approx. 4.3 mm
Cable length 25 m
Sheath color black
Drag chain suitability yes
Cable ambient temperature (dynamic) -25 ... +70 °C
Cable ambient temperature (static) -25 ... +80 °C
Material
Sheath PUR
Connection 2
Conductor end Cable end sleeve with insulating collar
Connection type flying lead
Connection 1
Connection type Plug connector M8x1
Connection type Female plug
Cable outlet Angle
Number of pins 3
Degree of protection IP67
Plug lock Screw connection
Insertion cycles 100
Material
Plug housing PUR

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 120280
Item designation C-M08F03-02X025PU25,0-ES-120280
Gross weight 0,643kg
Customs tariff number 85389099990
ECLASS 27-06-03-04 Appliance cord (data cable)
