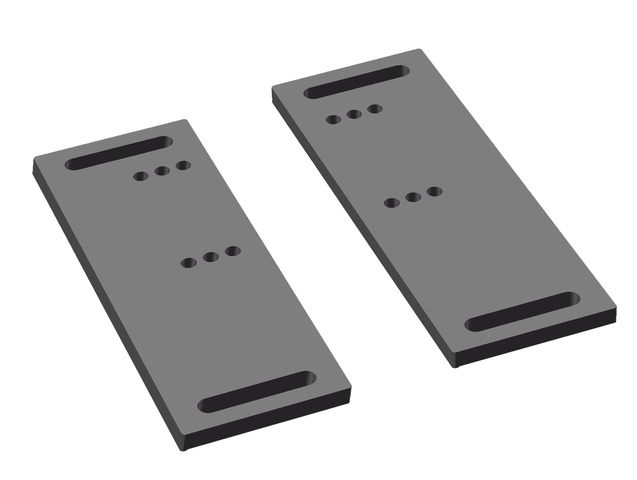

AM-SET-PP-119690 (Order no. 119690)

Mounting plate AM-SET-PP

  • Set consists of two mounting plates
AM-SET-PP-119690 (Order no. 119690)

Description

Ideal for profile mounting of CES switches and actuators with housing design C04. For aluminum standard profiles 30x30 to 45x45 and Bosch EcoSafe profiles.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Material Aluminum

Components included in the set

Included accessories 2x mounting plate

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 119690
Item designation AM-SET-PP-119690
Gross weight 0,07kg
Customs tariff number 85389099990
