RIEGEL TZ-C-NIRO-C2392 (Order no. 117194)
Choose content

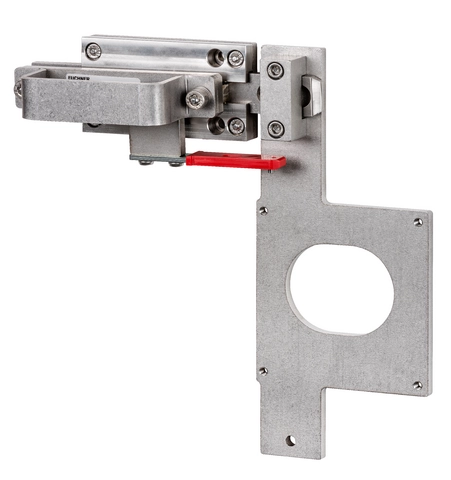

Bolt TZ-C... for safety switch TZ
- Stainless steel bolt
- For doors hinged on the left
- Can be locked in open position with padlocks
- Actuator and switch bracket included
Description
Benefits
- Robust construction
- Easily mounted to standard aluminum profiles and machine covers by screw connection
- No additional door handle necessary
Special features
- Easy to use
Version in stainless steel
- Suitable for use in the chemical and foodstuff industries
- Screw material stainless steel
- Handle and slide strips made of stainless steel
Dimensional drawings
| 1 | View D |
| 2 | View B |
| 3 | Screw locked |
| 4 | Safety switch TZ approach direction C |
| 5 | Door hinged on the left |
| 6 | Safety guard frame (40x40) |
| 7 | Attention! Bolt is not allowed to be used in conjunction with an escape release. |
Technical data
Mechanical values and environment
| Approach direction | C |
| Number of safety switches that can be mounted | 1 |
| Escape release | None |
| Storage temperature | -25 ... 70 °C |
| Material | |
| Switch bracket | stainless steel |
| Guide strips | stainless steel |
| Handle | stainless steel |
| Base plate | stainless steel |
Miscellaneous
| Detent mechanism | None |
