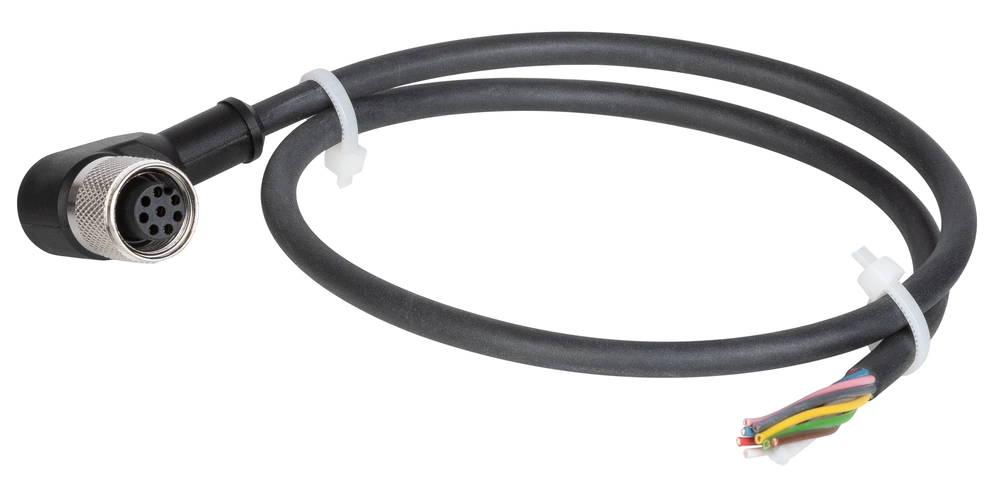

Connection cable with angled plug connector M12, 8-pin, 10m
- M12 female plug, 8-pin
- Angled plug connector
- Cable outlet C (left)
- PUR cable
- Cable length 10 m
- With flying lead
Description

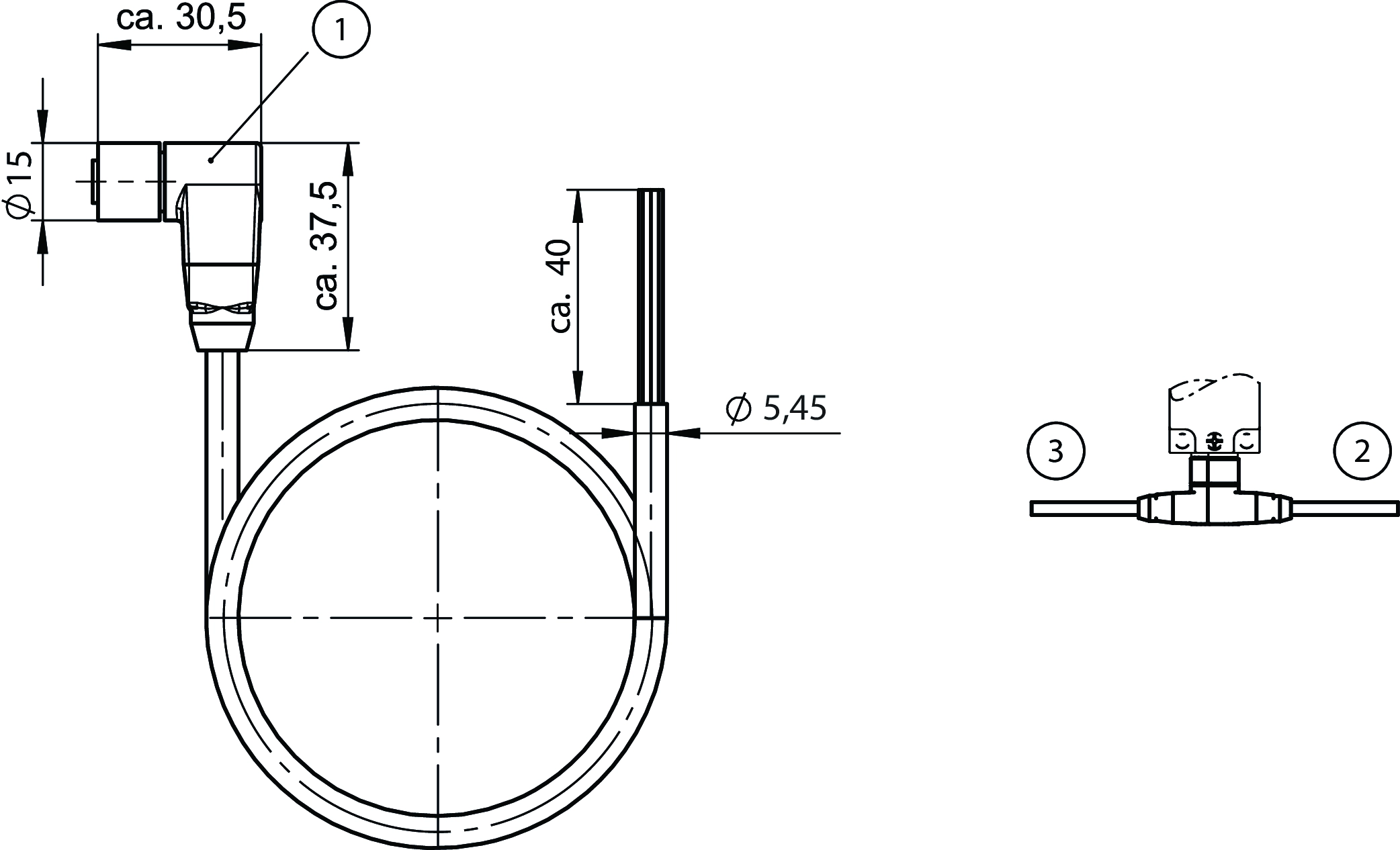

Dimension drawing
| 1 | Cable socket M12x1 / 8-pin |
| 2 | A |
| 3 | C |

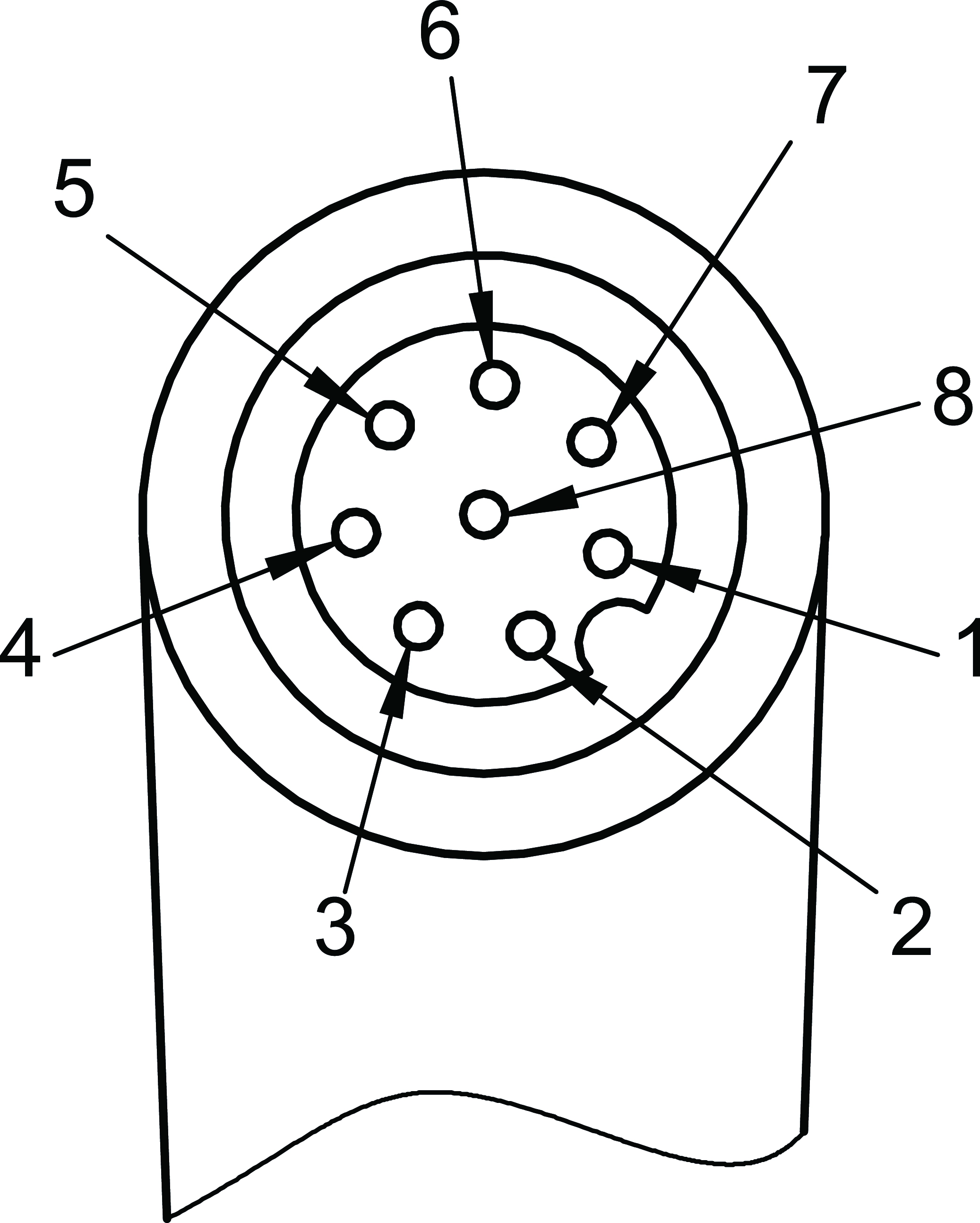

Terminal assignment
| Pin 1 | = WH |
| Pin 2 | = BN |
| Pin 3 | = GN |
| Pin 4 | = YE |
| Pin 5 | = GY |
| Pin 6 | = PK |
| Pin 7 | = BU |
| Pin 8 | = RD |
Technical data
Mechanical values and environment
| Cable ambient temperature (dynamic) | -25 ... +80 °C |
| Cable ambient temperature (static) | -25 ... +80 °C |
| Dynamic bending radius | 10 x cable diameter |
| Static bending radius | 5 x cable diameter |
| Sheath material | PUR |
| Conductor insulation material | PP |
| Drag chain suitability | Yes |
| Number of conductors | 8 |
| Type of cable | straight |
| Cable length | 10 m |
| Cable diameter | |
| Approx. | 5,15 mm |
| Conductor cross-section | 0.25mm² |
| Conductor identification | Color code |
| Sheath color | Black |
| Connection 1 | |
| Tightening torque | 0,5 Nm |
| Degree of protection | IP67 |
| Plug lock material | CuZn nickel-plated |
| Connection | Plug connectors M12x1 |
| Connection type | Female plug |
| Cable outlet | Angle |
| Number of pins | 8 |
| Plug lock | Screw connection |
| Plug housing material | TPU |
| Connection 2 | |
| Conductor end | Sheath stripped |
| Connection | Flying lead |
Electrical connection ratings
| Operating voltage | 30 V |
| Degree of contamination according to EN 60664-1 | 3 |
