MGB-H-AA1A6-L-111839 (Order no. 111839)

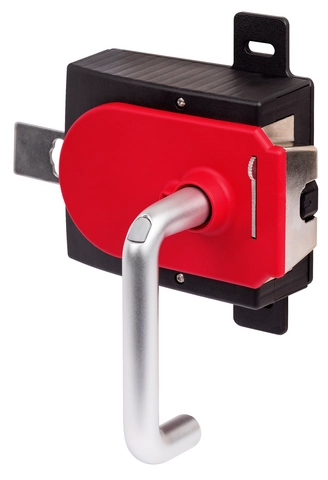

Handle module MGB-H... with automatically extending lockout mechanism

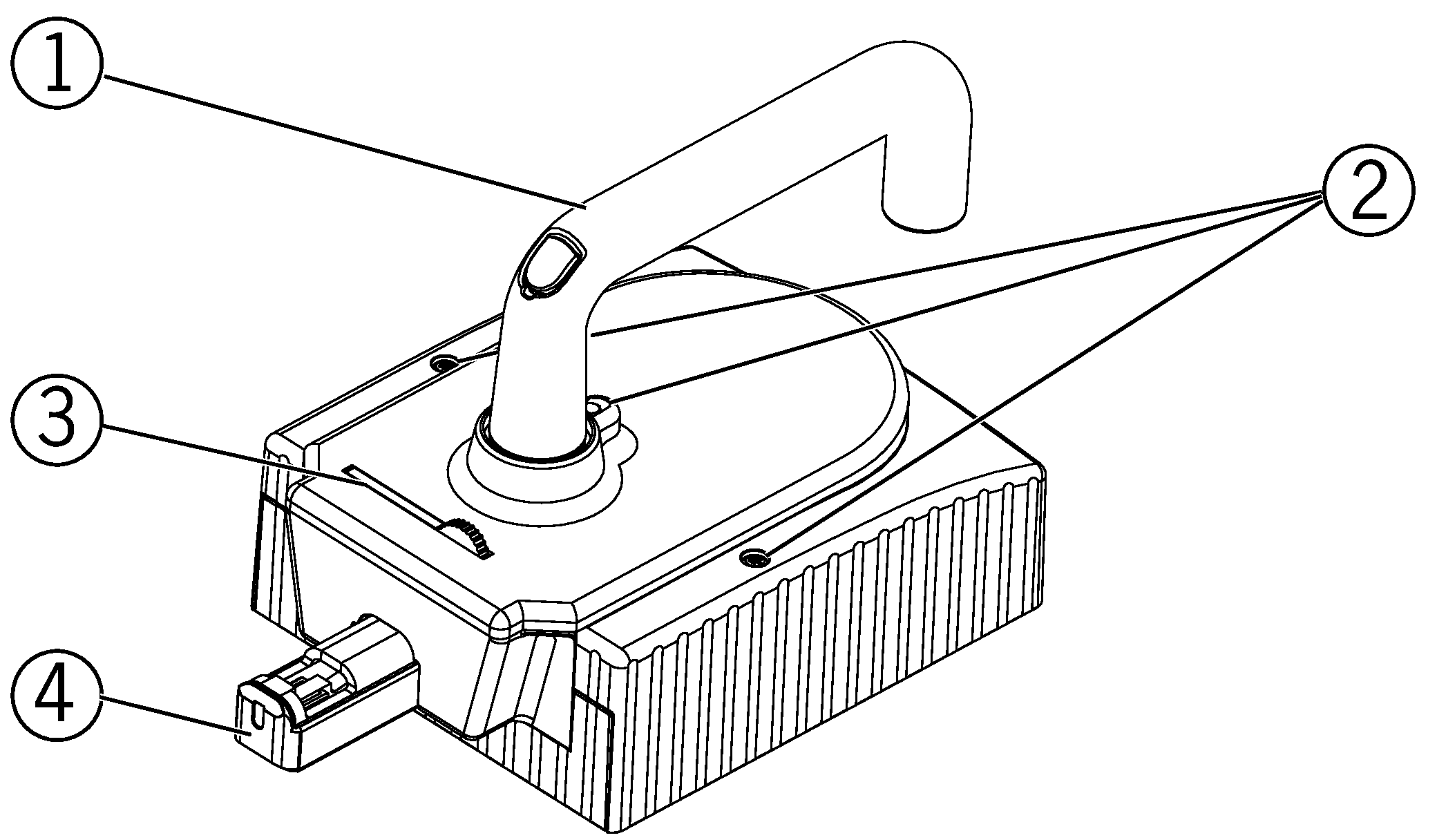

  • Intelligent bolt tongue
  • Fold-out lockout mechanism
  • Second automatically extending lockout mechanism
  • Door handle
  • Mounting plate
MGB-H-AA1A6-L-111839 (Order no. 111839)

Description

Bolt tongue

The bolt tongue is reliably detected by a transponder as soon as it is inserted into the evaluation module.

Lockout mechanism (automatically extending and fold-out)

For cleaning and service on the machine the bolt tongue can be locked with max. 3 padlocks.

The lockout mechanism extends automatically on the actuation of the handle and prevents the operation of the handle in the safe state. In addition, the fold-out lockout mechanism can be used.

Door handle

The MGB has a robust door handle that can be rotated in 90° steps to suit all installations. The actuating direction can be changed very easily for doors hinged on the left or right.

Door knob

As an alternative to the door handle, the handle module can also be equipped with a door knob.

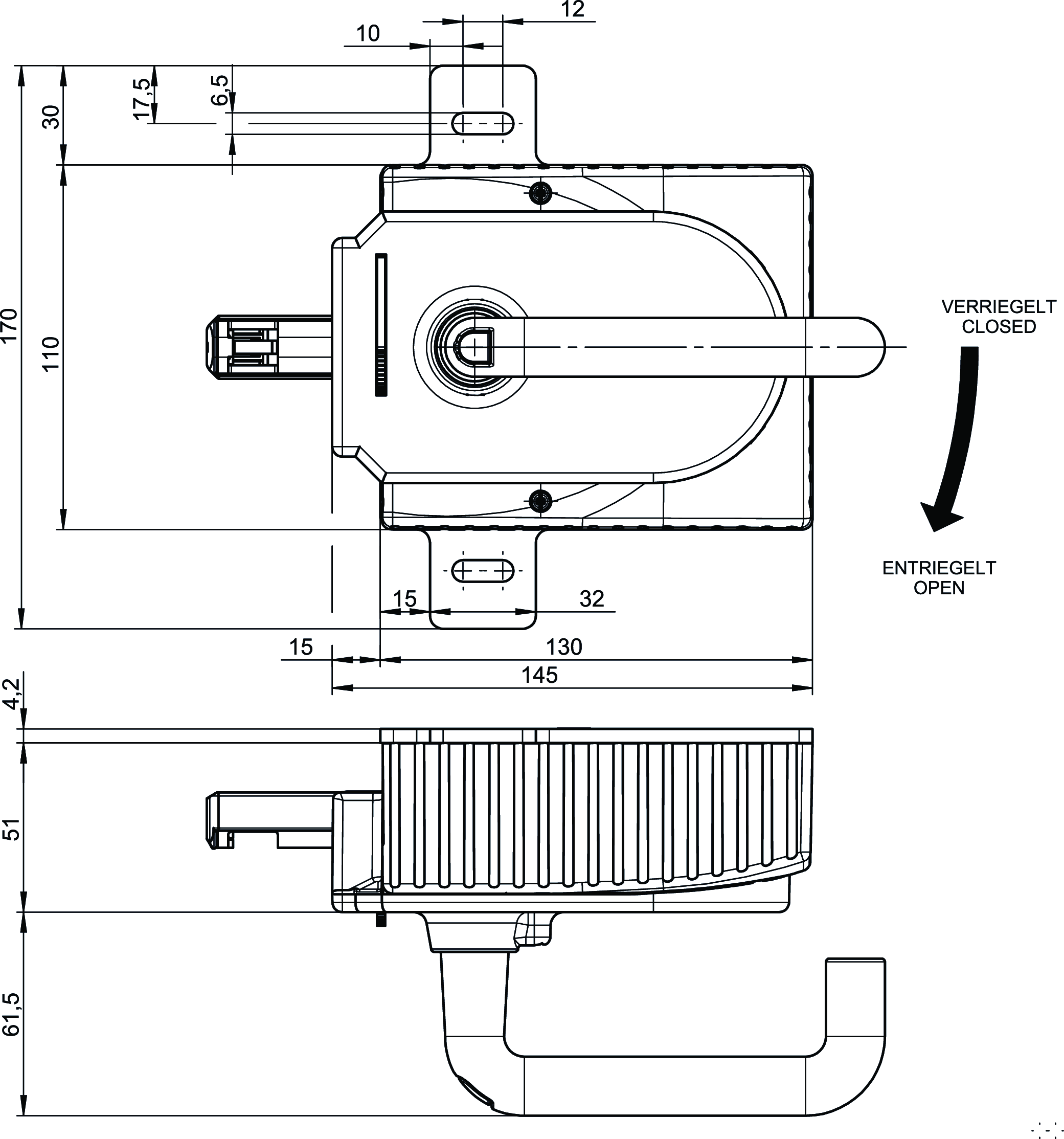

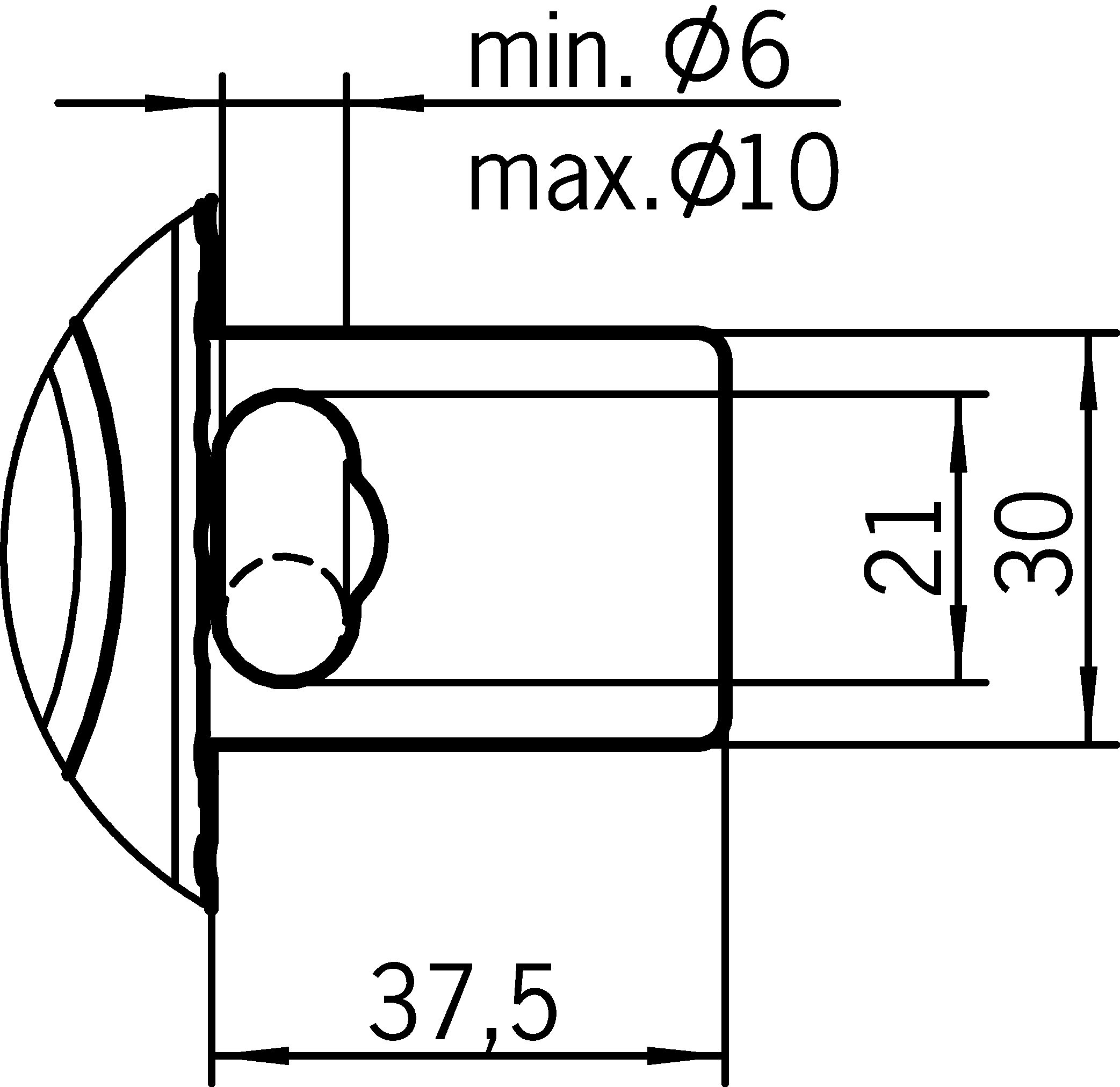

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Dimension drawing

Technical data

Approvals

Zulassung EAC

Mechanical values and environment

Housing material
Housing Reinforced plastic, die-cast zinc nickel-plated, stainless steel
Weight
Net 1,00 kg
Ambient temperature -20 ... 55 °C
Degree of protection IP65
Installation orientation Door hinge DIN left

Other

Additional feature With mounting plate and automatic lockout mechanism
Product version number V3.0.0
