Mounting plate for evaluation module-control module combination
- Easy and quick mounting (only two screws required)
- Quick module replacement
- Steel, powder coated
- Suitable for doors hinged on the right and left
Description
Mounting plate for evaluation module-control module combination
Suitable for all MGB combinations, comprising an evaluation module and a control module.
Important: Only use if the handle module is also fastened to a mounting plate.

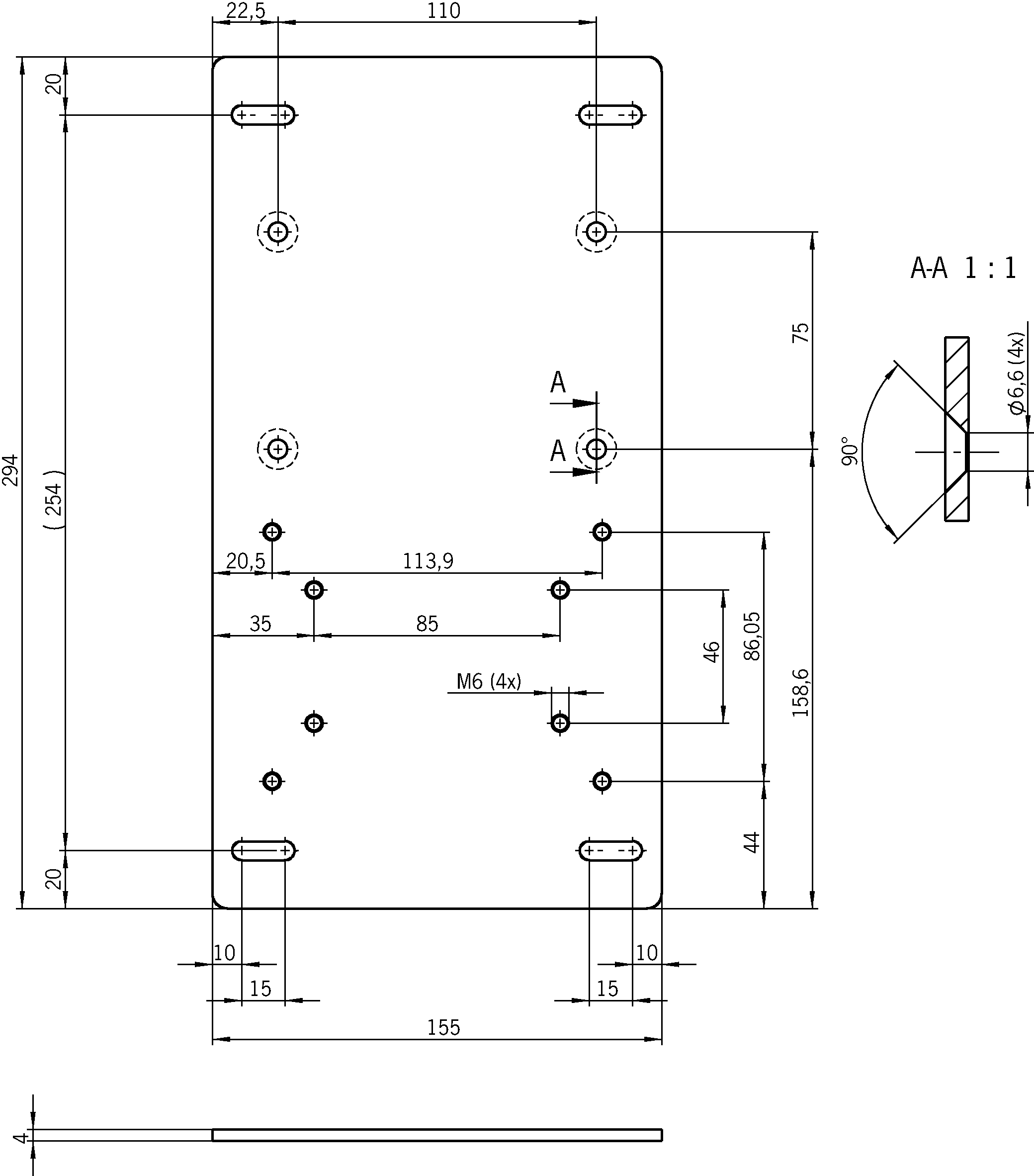

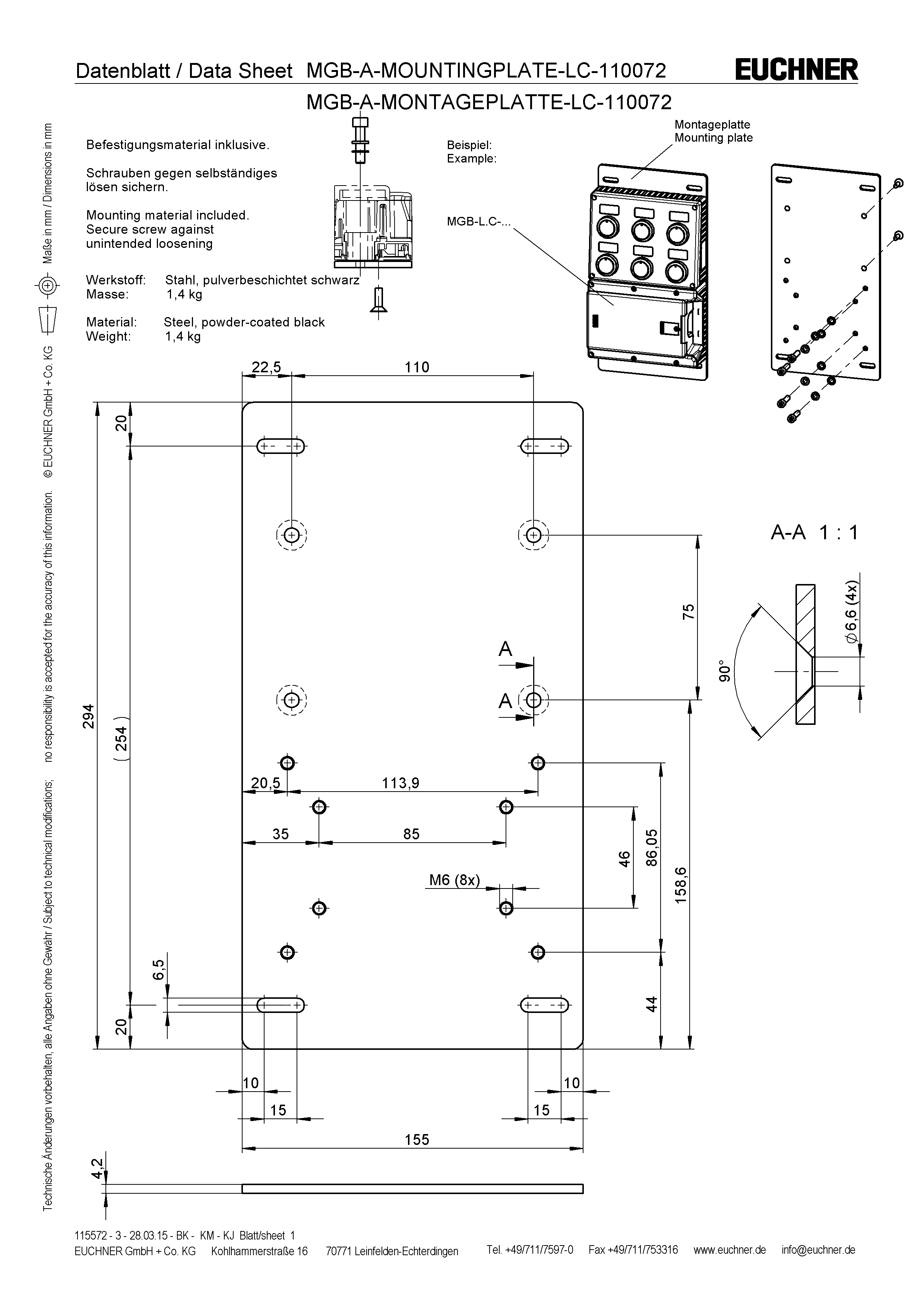

Dimensional drawings
Technical data
Mechanical values and environment
| Material | Steel, powder coated |
Miscellaneous
| Color | black |
| Compatibility | For devices MGB-LC |
| Additional feature | incl. fixing material for MGB-LC on mounting plate |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Other Documents
Sales documents
Multifunctional Gate Box - マルチファンクション・ゲート・ボックス
Doc. no.
Version
Language
Size
Multifunctional Gate Box - マルチファンクション・ゲート・ボックス
Doc. no.
136410
Version
09-06/17
Language
Size
0,9 MB
Multifunctional Gate Box MGB
Doc. no.
Version
Language
Size
Multifunctional Gate Box MGB
Doc. no.
106109
Version
10-02/18
Language
Size
21,7 MB
Multifunctional Gate Box MGB
Doc. no.
109155
Version
10-02/18
Language
Size
21,7 MB
Multifunctional Gate Box MGB
Doc. no.
114433
Version
10-02/18
Language
Size
8,2 MB
Multifunctional Gate Box MGB
Doc. no.
106108
Version
10-02/18
Language
Size
8,2 MB
多功能系统安全控制系统 MGB
Doc. no.
155883
Version
10-02/18
Language
Size
8,3 MB
Multifunctional Gate Box MGB
Doc. no.
121652
Version
10-02/18
Language
Size
8,0 MB
Ordering data
| Ordernumber | 110072 |
| Item designation | MGB-A-MOUNTINGPLATE-LC-110072 |
| Gross weight | 1,391kg |
| Customs tariff number | 85389099990 |
