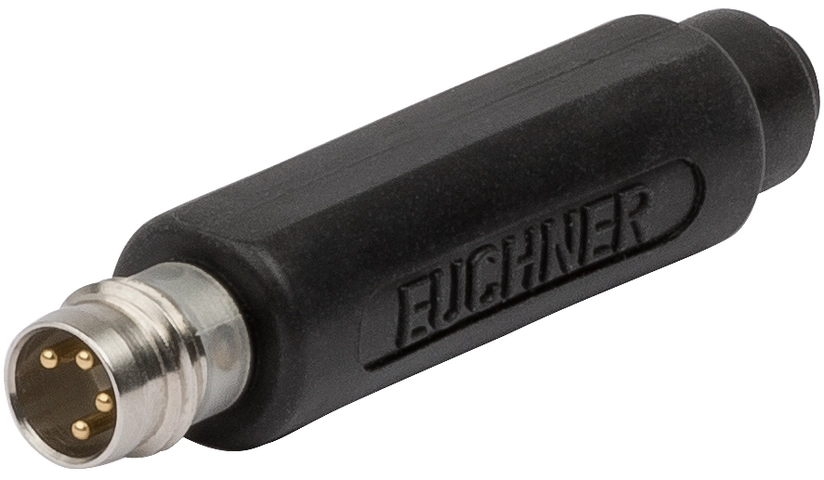

CEM-A-ZPS-110013 (Order no. 110013)
Choose content
Programming adapter
Description
- Programming adapter for setting the adhesive force

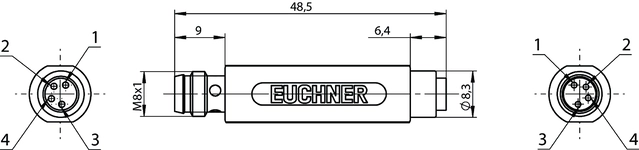

Dimensional drawings
Technical data
Approvals
Electrical connection values
| Operating voltage DC | |
| UCM | 24 V DC -15% ... +10% |
| Current consumption | 30 mA |
Mechanical values and environment
| Dimensions | 49 mm x Ø11 mm |
| Storage temperature | -25 ... 70 °C |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... 50 °C |
| Material | |
| Housing | Macromelt PA-based plastic |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,5 MB)
Single Documents
Other Documents
Approvals and certificates
S-Mark
Doc. no.
Version
Language
Size
S-Mark
Doc. no.
Version
Language
Size
0,8 MB
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,3 MB
Ordering data
| Ordernumber | 110013 |
| Item designation | CEM-A-ZPS-110013 |
| Gross weight | 0,008kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-05 Safety-related transponder switch with guardlocking |
