EMP-B-CET (Order no. 106694)

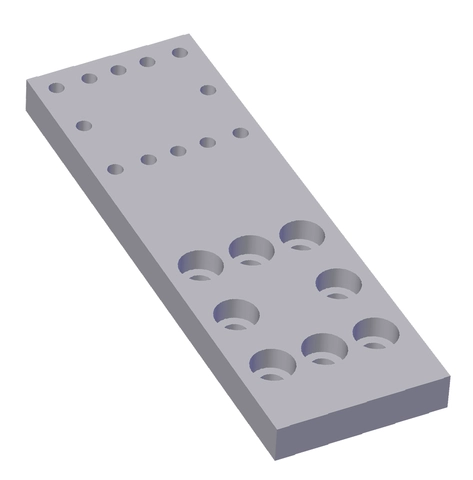

Mounting plate EMP-B-... for actuator CET

  • Mounting plate for actuator CET for hinged or sliding doors
  • Suitable for aluminum profiles 40 ... 45 mm
  • Horizontal and vertical mounting
  • Made of aluminum
EMP-B-CET (Order no. 106694)

Description

Installation example mounting plate EMP

<p>Installation example mounting plate EMP</p>

Hinged door

Sliding door

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1EMP-L-CET ID 106695 safety switch mounting plate
2EMP-B-CET ID 106694 actuator mounting plate
3Profile marking 45x45
4Material thickness 10 mm

Technical data

Mechanical values and environment

Material Aluminum

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 106694
Item designation EMP-B-CET
Gross weight 0,157kg
Customs tariff number 85389099990
