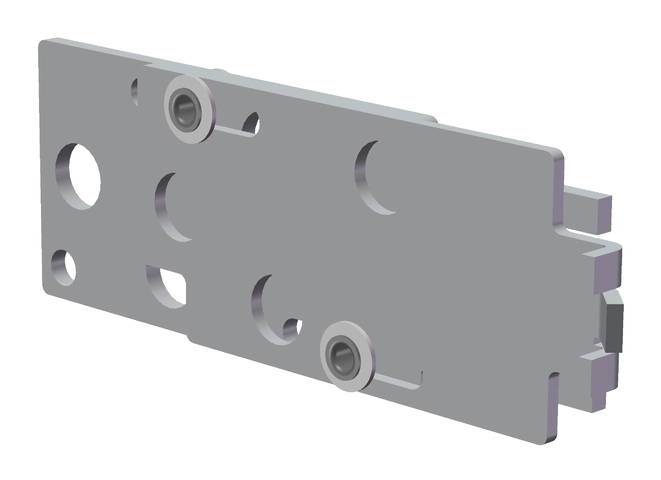

SPERREINSATZ STP/STA (Order no. 105701)

Lockout bar STA/STP/SGA/SGP/STM

  • Prevents unintentional closing of the door
  • Can be secured with padlocks
SPERREINSATZ STP/STA (Order no. 105701)

Description

With the safety door open, it can be slid into the actuating head on a switch with separate actuator (STA/STP/SGA/SGP/STM) instead of an actuator. Removal can be prevented using a commercially available padlock (max. 3 ea.). For the protection of persons in areas with a possible hazard.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Number of bores 3
Pin diameter 4 ... 7 mm
Material Stainless steel

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 105701
Item designation SPERREINSATZ STP/STA
Gross weight 0,047kg
Customs tariff number 85389099990
