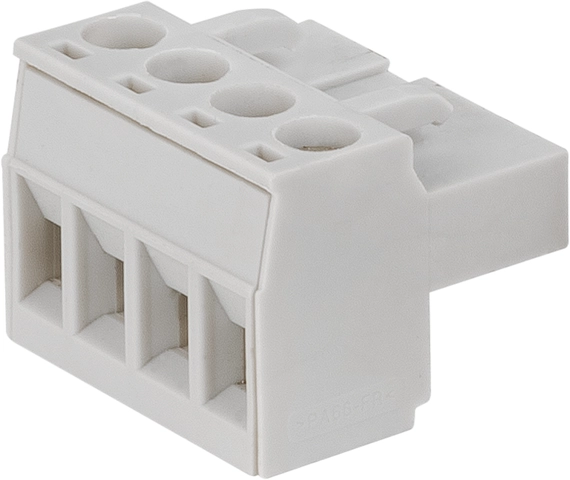

CES-EA-TC-AK04-104756 (Order no. 104756)
Choose content
Connection kit for evaluation units CES-AZ-.ES-01B, screw terminals
- Plug-in screw terminals for evaluation units CES-AZ-.ES-01B
- Coded
- 4 screw terminals included
Description
Dimensional drawings
| 1 | Coding 1 |
| 2 | Coding 2 printed |
| 3 | Coding 3 |
| 4 | Coding 4 |
Technical data
Electrical connection values
| Connection cross section | 0.25 ... 2.5 mm² |
Mechanical values and environment
| Stripping length | 8 mm |
| Connection type | plug-in screw terminals, coded |
| Storage temperature | -25 ... 70 °C |
Components included in the set
| Included accessories | 4 coded screw terminals per packaging unit |
Miscellaneous
| Compatibility | CES-AZ-.ES-01B |
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 0,1 MB)
Single Documents
Other Documents
Sales documents
ePlan macros
EUC.104756
Doc. no.
Version
Language
Size
EUC.104756
Doc. no.
Version
Language
Size
0,2 MB
Ordering data
| Ordernumber | 104756 |
| Item designation | CES-EA-TC-AK04-104756 |
| Gross weight | 0,032kg |
| Global Trade Item Number (GTIN) | 4047048005655 |
| Customs tariff number | 85389099990 |
