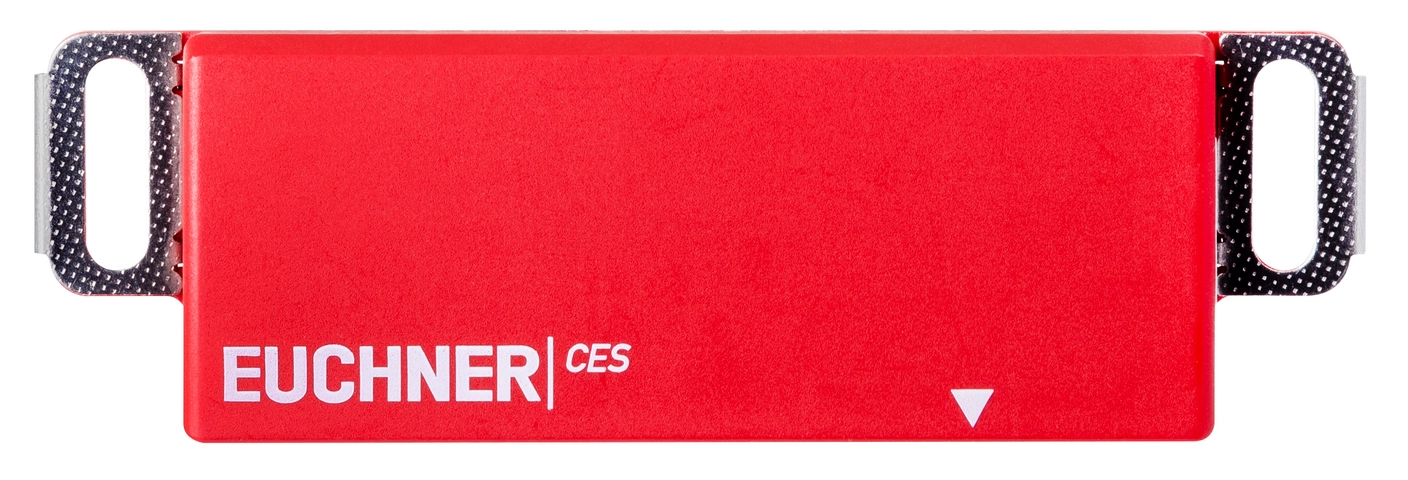

CES-A-BLN-L2-104510 (Order no. 104510)
Choose content
Actuator CES-A-BLN-L...
- Cube-shaped design 95 x 30 mm
- Door hinge left
- Reinforcement plates
- Two safety screws M4x14 included
Description
Dimensional drawings
| 1 | Active face |
Technical data
Approvals
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Storage temperature | -40 ... 70 °C |
| Degree of protection | IP67/IP69K |
| Ambient temperature | -40 ... 70 °C |
| Material | |
| Housing | Plastic (PBT) |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Download Complete Package (ZIP, 2,6 MB)
Single Documents
Declarations of conformity
EU-Konformitätserklärung
Doc. no.
Version
Language
Size
EU-Konformitätserklärung
Doc. no.
EDC2109923
Version
Language
Size
2,8 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001470
Version
Language
Size
0,2 MB
Other Documents
Approvals and certificates
WEEE
Doc. no.
Version
Language
Size
WEEE
Doc. no.
ECO20001806
Version
Language
Size
0,1 MB
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,2 MB
Sales documents
CAD/eCAD
Ordering data
| Ordernumber | 104510 |
| Item designation | CES-A-BLN-L2-104510 |
| Gross weight | 0,04kg |
| Customs tariff number | 85389099990 |
| ECLASS | 27-27-24-04 Actuator for safety-related proximity switch |
