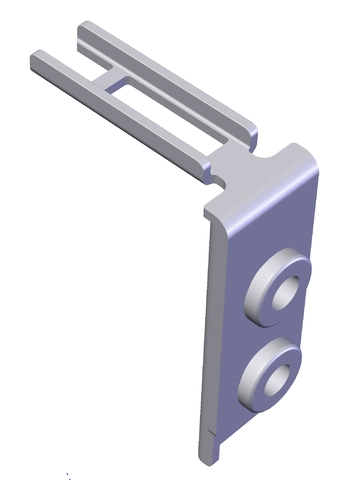

BETAETIGER-Q-WTB (Order no. 103390)

Actuator for safety switch NQ/TQ

  • With rubber bush
  • Minimum door radius 160 mm
  • Maximum locking force 500 N
  • With mounting plate
  • Mounting aid included
BETAETIGER-Q-WTB (Order no. 103390)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Mounting plate
2Mounting aid
3Rubber bush

Technical data

Mechanical values and environment

Storage temperature -25 ... 70 °C
Overtravel 1.3 ... 2.9 mm see operating instructions relating to the product
Door radius min. 160 mm
Material
Actuator Stainless steel
Rubber bush NBR

Downloads

Ordering data

Ordernumber 103390
Item designation BETAETIGER-Q-WTB
Gross weight 0,013kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
